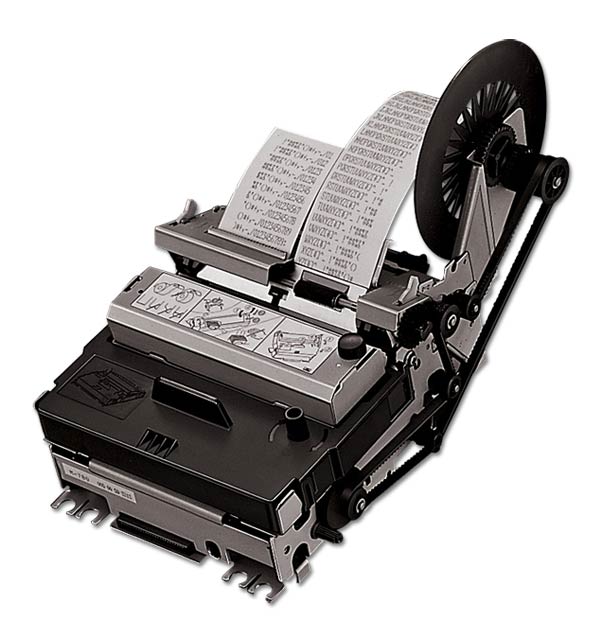

Back catalogue – Epson M-780
Impact Mini Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINTING METHOD | Serial impact dot matrix | |||||
| PRINTING FORMAT | ||||||
| FONT | 7 x 9 | |||||
| COLUMN CAPACITY | 18 columns x 2, Validation: 42 columns | |||||
| CHARACTER SIZE | 1.3 (W) x 3.1 (H) mm | |||||
| LINE SPACING | 4.7mm | |||||
| COLUMN SPACING | 1.53mm | |||||
| NUMBER OF TOTAL DOTS | Receipt & Journal: 81 dots (162 positions) / line Validation: 189 dots (378 positions) / line |
|||||
| PRINTING SPEED | Approx. 3.3 lines / sec. (at 24 VDC) | |||||
| PRINTHEAD | ||||||
| VOLTAGE | 24 VDC ± 5%10% | |||||
| PEAK CURRENT | Approx. 10.8 A (at 24 VDC) | |||||
| MOTOR | ||||||
| VOLTAGE | 24 VDC ± 5%10% | |||||
| MEAN CURRENT | Approx. 0.25 A (at 24 VDC) | |||||
| PAPER | Roll paper / Validation paper | |||||
| DIMENSIONS | Roll paper: 37.5 ± 0.5mm (W) x dia. 83mm max. / Validation: 134mm or more (W) x 70mm or more(H) | |||||
| TOTAL THICKNESS | Roll paper 0.06 to 0.09mm, Validation: 0.07 to 0.2mm | |||||
| COPY CAPABILITY | Original + two copies (Validation) | |||||
| RIBBON CASSETTE | ERC-37 | |||||
| AMBIENT TEMPERATURE | 0 to 50°C | |||||
| RELIABILITY | ||||||
| PRINTHEAD LIFE | 100,000,000 characters | |||||
| MCBF | 3,000,000 lines | |||||
| PRINTER LIFE | 5,000,000 lines | |||||
| OVERALL DIMENSIONS | 135mm (W) x 227.7mm (D) x 150.5mm (H) | |||||
| WEIGHT | Approx. 1.0 kg (1.1 kg with autocutter) | |||||
