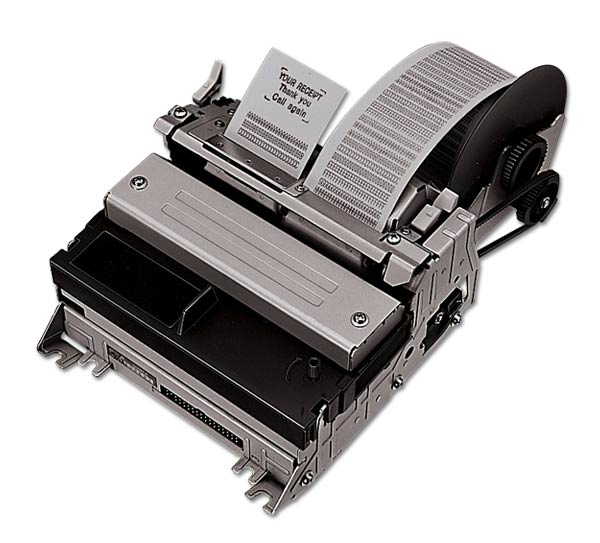

Back catalogue – Epson M-U420

Impact Mini Printers
PRINTER
PRINTING METHOD Serial impact dot matrix
PRINTING FORMAT
FONT 7x9
COLUMN CAPACITY Receipt : 24 columns Journal : 24 columns Validation : 55 columns
CHARACTER SIZE 1.32 (W) x 3.1 (H) mm
LINE SPACING 4.3mm
COLUMN SPACING 1.54mm
NUMBER OF TOTAL DOTS R / J : 108 dots (216 positions) / line Validation : 247 dots (495 positions) / line
PRINTING SPEED Approximately 3 lines / sec. (at 24 VDC)
PRINTHEADS
VOLTAGE 24 VDC ±5% 10%
PEAK CURRENT Approx. 8.6 A (at 24 VDC)
MOTOR
VOLTAGE 24 VDC ±5% 10%
MEAN CURRENT Approx. 0.2 A (at 24 VDC)
PAPER Roll paper / Validation paper
DIMENSIONS Roll paper : 44.5 ± 0.5 mm (W) x dia. 83 mm max.
Validation : 135 to 210 (W) x 70 (H) mm mini.
TOTOAL THICKNESS Roll paper : 0.06 to 0.09 mm / Validation : 0.07 to 0.14 mm
COPY CAPABILITY Original and one copy (Validation)
RIBBON CASSETTE ERC-32
OPERATING TEMPERATURE 0 to 50°C
RELIABILITY
PRINTHEAD LIFE 150,000,000 characters
MCBF 4,000,000 lines
PRINTER LIFE 8,000,000 lines
OVERALL DIMENSIONS 150.7mm (W) x 251.5mm (D) x 103.5mm (H)
WEIGHT Approx. 1.0 kg (1.1 kg with autocutter)


Product name Globalcode Price (inc GST)
excludes delivery		 Order quantity
RIBBONS
Ribbon Cassette ERC-32B BLACK - 50 Pack C43S015371_50 $286.00
Ribbon Cassette ERC-32B BLACK C43S015371 $7.35
Ribbon Cassette ERC-32B BLACK - 100 Pack C43S015371_100 $541.89
Ribbon Cassette ERC-32B BLACK - 200 Pack C43S015371_200 $1,029.60 Out of stock
Notify me
Ribbon Cassette ERC-32B BLACK - 20 Pack C43S015371_20 $128.70
