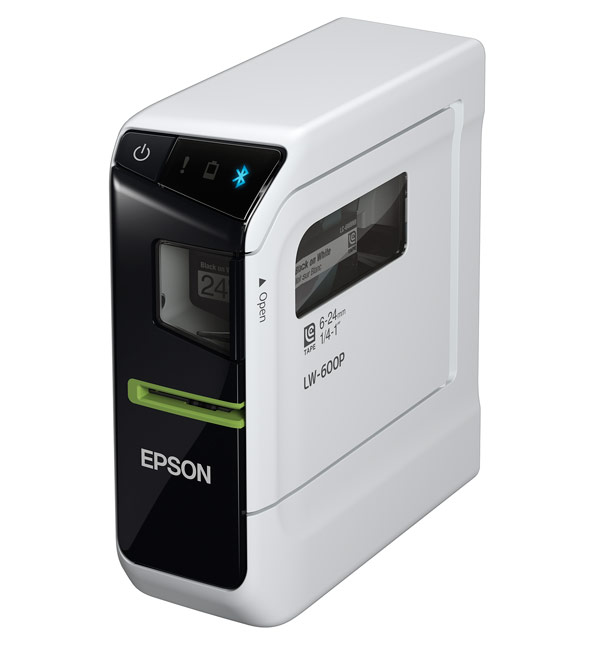

Back catalogue – Epson LabelWorks LW-600P
Printer |
||
| PRINTER TYPE | ||
|---|---|---|
| WHAT'S IN THE BOX | • LW-600P Label Printer • 12mm Black on White sample tape cassette • User Guide and Warranty Card |
|
| HARDWARE FEATURES | ||
| Printing Technology | Thermal transfer | |
| Tape width | 9 mm, 12 mm, 18 mm, 24 mm | |
| Printing resolution | 180dpi | |
| Printable Dot Numbers | 128 dot numbers | |
| Print height | 18 mm | |
| Print speed | 15 mm/sec | |
| Number of printable lines | Optional | |
| Maximum text length | Optional | |
| Multi-block | Optional | |
| PRINT SETTINGS | ||
| Auto increment | Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time | |
| Enlargement printing | No | |
| Mirror printing | Yes | |
| Vertical printing | Yes | |
| Barcodes | Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E | |
| Wire wrap | Yes | |
| Flag | Yes | |
| Margin setting - Label Editor | 1mm, Manual | |
| Fixed Length | Yes | |
| Setting Area | Custom | |
| FONTS & STYLES | ||
| Fonts | Depending on user's PC | |
| Font Size | Optional | |
| Frames | 86 Frames | |
| Tables | 8 Tables | |
| Style | Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline | |
| Layout Alignment | Left, Right, Centre, Manual, Justified | |
| Character Spacing | Optional | |
| Character width | Optional | |
| MEMORY | ||
| Memory alphanumeric | Depending on user's PC | |
| Memory accent | Depending on user's PC | |
| Accent learning | Yes | |
| Memory file (saved labels) | Depending on user's PC | |
| Last label | View history, Browse | |
| HARDWARE | ||
| Cutter | Auto | |
| Detection | Cover open, Tape width | |
| Strap hole | Yes | |
| Power lamp | Yes | |
| Feed button | Yes | |
| GENERAL | ||
| Energy Use | 12 W (printing), 0.8 W (Ready), 0.21 (Power off) | |
| AC-Adapter | Yes (Available at epson.com.au) | |
| Batteries | 6 x AA (Not included) | |
| Low battery indicator | Yes | |
| Product dimensions | 54 x 132 x 146 mm (Width x Depth x Height) | |
| Product weight | 440g | |
| Colour | Black, Pale Grey/White | |
| CONNECTIVITY | ||
| Interfaces |
USB (Mac and Windows PC only) Bluetooth (iOS and Android only) |
|
| Compatibile Operating Systems | Android 2.3+, Mac OS 10.6+, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows Vista, Windows Vista x64, Windows XP, iOS 5.0+, iOS 6.0+ | |
| System requirements | Approx. 100 MB HDD space | |
| PC Display requirements | XGA (1024 x 768) or higher | |
| Built-in memory | Yes, up to 50 labels | |
| Keyboard | QWERTY | |
| Tape Cutter | Built-in, Manual | |
| Maximum resolution | 180dpi | |
| Maximum print width | ~3/8" (9.0 mm) | |
| Maximum print speed | 6mm/sec | |
| Maximum number of printed lines | 4 | |
| Batteries | 6 AA (not included) | |
| Open cover detection | Yes | |
| Battery level indicator | Yes | |
| TAPE INFORMATION | ||
| Tape compatibility | LC | |
| Tape width | 18 mm | |
| Tape length | up to 9m | |
| Tape varietes | Standard, Iron-on, Metallic, Strong Adhesive, Glow-in-the-Dark and Clear | |
| SOFTWARE FEATURES | ||
| Number of fonts | 14 | |
| Types of fonts | - | |
| Number of font styles | 10 | |
| Number of font sizes | 5 | |
| Number of font widths | 2 | |
| Specialty Print Options | 8 (Variety of Tab, Flag and Wraps) | |
| Barcode Printing | 8 (CODE39, CODE128, ITF, CODABAR, UPC-A, UPC-E, EAN-8, EAN-13) | |
| Built-in Symbols | 300+ | |
| Built-in Frames | 75+ | |
| Maximum charactres per label | 80 | |
| Auto numbering | Yes | |
| Multiple Print Options | Yes | |
| Vertical Printing | Yes | |
| Mirror Prining | Yes | |
| Number of languages | 7 (English, Spanish, French, Brazilian Portuguese, European Portuguese, Italian, Dutch, German) | |
| GENERAL | ||
| Power Consumption | Printing - 2.555w Ready - 0.556w Power Off - 0.18w |
|
| Rated frequency | - | |
| Dimensions | (D x W x H): 170 x 110 x 56mm | |
| Weight | 418g | |
| WARRANTY | 12 months return to base | |
| Epson Warranty | ||
