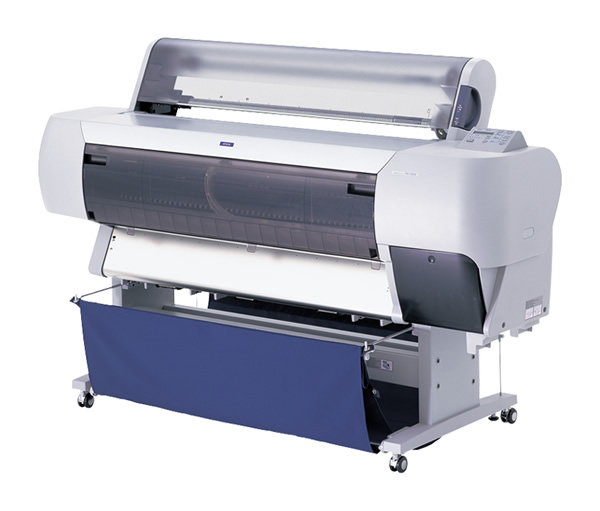

Back catalogue – Stylus Pro 10600CF
For printing professionals who demand exceptional print and production capabilities without sacrificing image quality or print durability.
| PRINTER TYPE | Pro Graphics Printers | |
|---|---|---|
| PRODUCT NAME | ||
| PRODUCT CODE | ||
| PRINTER TYPE | ||
| PRINTING METHOD | On-demand ink jet (piezoelectric) Technology | |
| NOZZLE CONFIGURATION | 180 nozzles (Black), 900 nozzles (180 nozzles x 5 colours) | |
| RESOLUTION | Max. 1440dpi x 720dpi | |
| PRINT SPEED | Up to 20m2 (Plain paper/Speed mode) | |
| A0 size | About 3.5 minutes (360 dpi x 360 dpi/ Speed mode/Plain Paper) About 7 minutes (360 dpi x 720 dpi/ Speed mode/Premium Glossy Photo Paper) About 11 minutes (720 dpi x 720 dpi/ Quality mode/Premium Glossy Photo Paper) About 20 minutes (1440 dpi x 720 dpi/ Premium Glossy Photo Paper) |
|
| INK SYSTEM | Epson ColorFast Pigment Ink (Individual 6 colour high capacity ink
ColorFast Ink Technology cartridge 500 ml/colour) (Black, Yellow, Magenta, Cyan, Light Magenta, Light Cyan) |
|
| PAPER HANDLING | ||
| Roll Paper | Double rolls (1 roll should be less than 100mm/Outside diameter) / Single roll (1 roll should be less than 50mm/Outside diamater) | |
| Cut Sheet | A single sheet | |
| MEDIA CUTTER | ||
| Standard | Auto media cutter | |
| Option | Manual cutter unit | |
| ROLL MEDIA CORENDIMENTIONS | Core diameter 2" or 3" | |
| MEDIA | ||
| Roll Media | Media width 210mm - 1118mm Media thickness 0.08mm - 0.50mm |
|
| Cut Sheet | Media size A4 - B0+ Media width 210mm - 1118mm Media length 279mm - 728mm Media thickness 0.08mm - 1.50mm Media length 728mm - 1580mm Media thickness 0.08mm - 0.50mm |
|
| PRINT MARGINS | ||
| Roll Media | 3mm (top, sides, bottom) / 15mm (top, bottom), 3mm (sides) / 15mm (top, sides, bottom) *Three modes are available | |
| Cut Sheet | 3mm (top, sides), 14mm (bottom) | |
| LINE ACCURACY | +/- 0.2% of specified page length | |
| RAM | 128MB | |
| LANGUAGES | ESC/P Raster, HPGL/2 via ZEHPlot printing utility, Adobe Postscript Level 3 with Optional Software RIP |
|
| INTERFACES | ||
| Standard | Centronics-type 8 bit Parallel interface (IEEE-1284 Nibble/ECP Mode), USB Series B (1.1 compatible) | |
| Option | Expansion slot: Type B Ethernet 10/100BaseT/TX Print Server, IEEE 1394l/F Card | |
| TOTAL PRINT VOLUME | 20,000 pages (BO size) | |
| ENVIRONMENTAL CONDITIONS | ||
| Temperature | 10-35C (Operating) | |
| Humidity | 20-80% RH (Operating) | |
| ELECTRICAL SPECIFICATIONS | ||
| Rated Voltage | AC 120V or 220V~240V | |
| Rated Frequency | 50~60Hz | |
| Power Consumption | Less than 131W (Operating) / Less than 30W (Sleep mode) | |
| DIMENSIONS / WEIGHT | ||
| Dimension | (w)1865mm x (D) 680mm x (H) 1222mm | |
| Weight | About 134kg (Including stand, not including ink cartridges) | |
| STANDARD PRINTER DRIVERS (OS) | Macintosh 8.5.1 or later, Microsoft® Windows®98/95/NT4.0/2000/ME | |
| WARRANTY | One year on site in metropolitan areas | |
| STANDARD ACCESSORIES | Power cord x 1 Roll feed spindle 2"(Normal) x 1 3" (High Tension) x 1 Roll paper sample (Double weight Matte Paper 5m) x 1 roll / Paper basket x 1 set |
|
| RECOMMENDED ENVIRONMENT | ||
| PC | CPU: Pentium II 400MHz or higher processor, Memory: 128 MB RAM or more, HDD: 500 MB or more free disk space | |
| Macintosh | CPU: PowerPC G4 400MHz or more, System software: System 8.1 or later, Memory: 20MB or more of available memory, HDD: 500 MB or more free disk space | |
