Back catalogue – Epson EB-W16SK

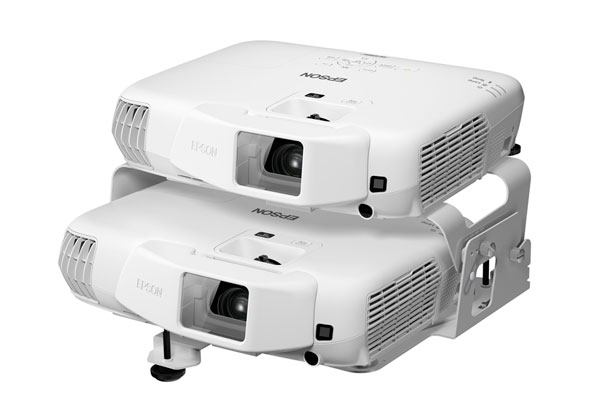

The Epson EB-W16SK dual projection system adds a bold, new dimension to presentations. This innovative system features two powerful projectors stacked together, for ultra-bright 3D video and images in large classrooms or boardrooms. This dual projection system is the perfect way to engage your entire audience, at a price that won't break the budget.

KEY FEATURES & BENEFITS
  • Beautiful 3,000 Lumens Light Output and Colour Light Output – Enjoy beautiful and clear images wherever you go without worrying about ambient light levels
  • Passive 3D – Enjoy bright 3D content in large audiences at an affordable price
  • Supports all 3D content – No external 3D converter box necessary
  • Fast and Easy Setup – 1.2x Optical zoom and Auto Screen Fit makes setup a breeze
  • HDMI input for high-quality, high-definition video – Deliver both audio and brilliant HD video content with just one cable
3x Brighter Colours with Epson
3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector's specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector's colour brightness specification.

Dynamic content in 2D or 3D – the choice is up to you

Driven by 3LCD technology, the versatile EB-W16SK ensures amazing quality and colour for both 2D and 3D content. Add 3D material to enhance your presentations and ensure a truly dynamic visual experience. Utilising passive 3D technology, you can engage a large audience, with minimal cost due to the lower priced glasses.

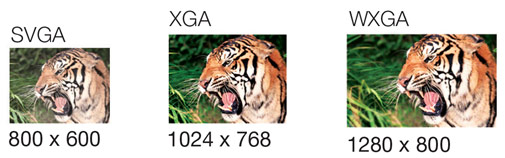

Remarkable widescreen performance

The EB-W16SK features WXGA resolution (1280 x 800, 16:10 aspect ratio), making it ideal for use with the latest-generation widescreen computers. It gives you 30% more image area than a 4:3 image and 10% more image area than a 16:9 image. The EB-W16SK will still allow you to display 4:3 and 16:9 content.

HDMI input for high-quality, high-definition video

Deliver both audio and brilliant HD video content with just one cable. Compatible with the latest laptops, Blu-ray® and media players.

Works with passive 3D glasses

Passive 3D projection offers an economical way to bring engaging 3D content to the entire audience. Because passive 3D glasses are so affordable, it’s easy to provide enough glasses for everyone without the need to share. And, there are no batteries or electronics to worry about. Best of all, if the glasses are lost, they can easily be replaced without significantly impacting your budget.

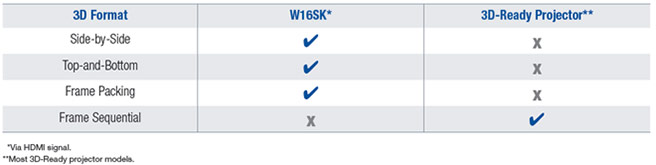

Supports multiple 3D formats

The EB-W16SK supports multiple 3D formats, eliminating the need for an external converter box. However, most 3D-ready projectors only support one format, and an external converter box must be purchased in order to support multiple formats. So, when you are evaluating the right 3D projector, make sure to check to see if the projector supports your preferred multiple 3D formats.

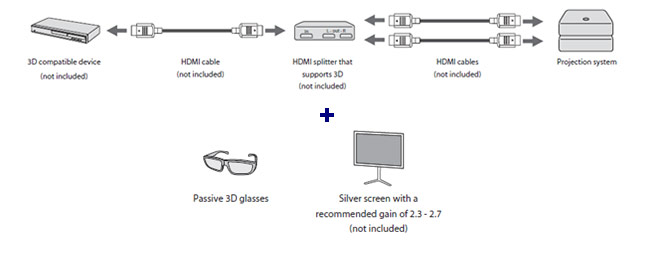

What you’ll need to access passive 3D

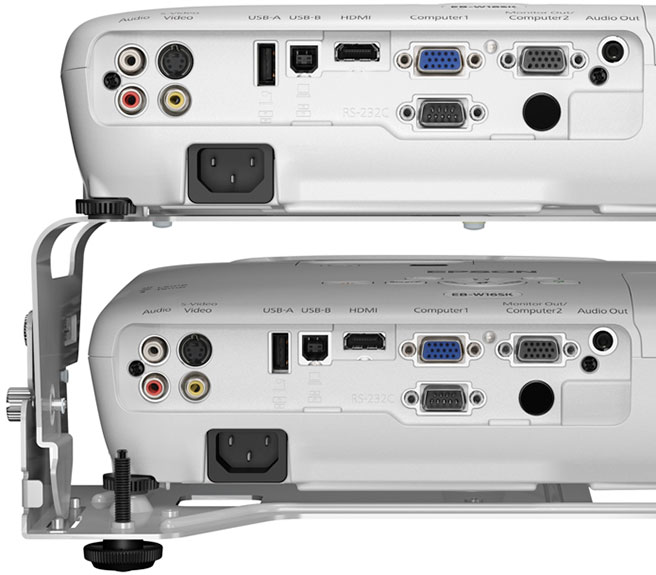

Connectivity Panel

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

PRODUCT NAME
PRODUCT CODE
WHAT'S IN THE BOX
  EB-W16 Projector x 2, Stack Kit, Adult Passive 3D Glasses x 1, USB Control Cable, Polarizing Plate x 2, 1.8m Power Cord x 2, Remote Control + Batteries, Password Protection Sticker, Start Up Guide + CD
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.59-inch with MLA (D8)
OPTICAL
Zoom 1 - 1.2
Screen Size 33" to 318" [0.9 to 9.0 m] (Zoom:Wide)
33" to 317" [1.08 to 10.8 m] (Zoom:Tele)
Projection Distance 60" screen 1.68 - 2.02 m
Throw Ratio 1.30 (Zoom:Wide), 1.56 (Zoom:Tele)
Projection Lens F Number 1.58-1.72
Projection Lens Focal Length 16.9 mm - 20.28 mm
Focus Method Manual
Colour Light Output 3,000 Lumens
White Light Output 3,000 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 5,000:1
Lamp Type 200 W UHE (E-TORL)
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video
Input: Computer 2x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI
Input: USB 1 x USB A, 1 x USB B
Input: Audio 1 x RCA (Red and White)
Output: Audio 1 x Stereo mini jack
Output: Computer 1 x D-sub 15-pin (RGB)
Control 1 x RS232c
ADVANCED FEATURES
USB Plug 'n Play Yes
PC Free Photo, Movie (Motion JPEG)
3D Formats Top-and-Bottom, Side-by-Side, Frame Packaging
Internal Speaker 1 x 2W
Direct Power On Yes
Security Kensington Lock Provision
Colour Modes 2D: Dynamic, Presentation, Theatre, Photo, sRGB 3D: 3D Dynamic, 3D Theatre
GENERAL
Dimensions including stack mount W x H x D 372 x 350 x 224 mm
Weight including stack mount 7.9 kg
Lamp Hours 4,000 hours (Normal)
5,000 hours (Eco)
Product Warranty 2 Years
Lamp Warranty 1yr or 750 Hours - Whichever comes first
Power Consumption: Lamp on 277W
Power Consumption: Standby 0.40W
Noise Level 36 dB
PRODUCT OPTIONS Item Code Description
  V12H003B23 Epson Ceiling Mount - ELPMB23
  V12H003P13 Extension Pole - 668mm to 918mm - ELP-FP13
  V12H003P14 Extension Pole - 918mm to 1,168mm - ELP-FP14
  V12H485001 Passive Adult 3D Glasses (5 pcs)
  V12H486001 Passive Child 3D Glasses (5 pcs)
  V13H010L67 Epson Projector Lamp - ELPLP67
  V13H134A42 Epson Air Filter - ELPAF42

Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.



Product name Globalcode Price (inc GST)
excludes delivery
Order quantity
ACCESSORIES & OPTIONS
ELPMB23 Ceiling Mount V12H003B23 $247.80
ELPFP13 Extension Pole - 450mm V12H003P13 $100.80
ELPFP14 Extension Pole - 918mm to 1,168mm V12H003P14 $145.95
