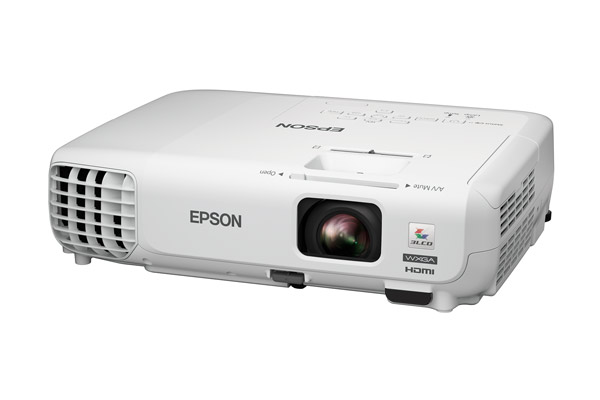

Back catalogue – Epson EB-W120

The Epson EB-W120 WXGA Projector offers essential business features at a cost-effective price. With compact design and easy setup, this widescreen performer gets you up and running in no time. The EB-W120 delivers exceptional image quality for compelling presentations with 2700 lumens of colour brightness and 2700 lumens of white brightness. Now with HDMI Connectivity, easy-slide keystone correction and a fast wireless connection, your business will reach a new level. No matter where business takes you, you’ll be ready with this versatile projector.

KEY FEATURES & BENEFITS
  • 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • One measurement of brightness is not enough – Look for both colour brightness and white brightness. The Epson EB-W120 has:
    Colour Brightness: 2,700 lumens
    White Brightness: 2,700 lumens
  • HDMI input for high-quality, high-definition video – Deliver both audio and brilliant HD video content with just one cable
  • Automatic Vertical Keystone Adjuster – This function automatically detects the projectors vertical angle and adjusts the vertical keystone distortion instantly
  • USB Plug 'n Play – Transmit images, sound and mouse operation through one USB cable
  • Included Wireless connection to your laptop and mobile device – Connect directly to your computer, smartphone or tablet, without wires.
  • Epson iProjectionTM – Wirelessly display and control content from your iPhone®, iPad®, iPod touch® and AndroidTM devices with the app
  • Low Cost of Ownership & Maintenance – The EB-W120 utilises a lamp priced at $159 for up to 6,000 hours, and makes use of a new High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance.
3x Brighter Colours with Epson
3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector's specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector's colour brightness specification.

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

HDMI input for high-quality, high-definition video

Deliver both audio and brilliant HD video content with just one cable. Compatible with the latest laptops, Blu-ray® and media players.

Automatic Vertical Keystone Adjuster

Take all the guesswork out of setting up your projector, thanks to the Auto Keystone function. This function automatically detects the projector’s vertical angle and adjusts the vertical keystone distortion instantly.

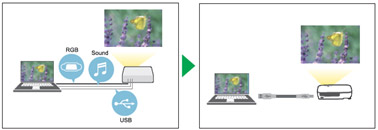

USB Plug 'n Play

Epson’s advanced 3 in 1 USB connectivity enables instant Plug 'n Play setup for Video, Audio and Control. Forget about complicated computer key sequences and non-intuitive controls. Instead, just plug in a standard USB cable and let your presentation impress the audience.

Wireless connection to your laptop and mobile device

The EB-W120 has convenient wireless features built-in to connect wirelessly to a computer or laptop via a direct peer-to-peer connection. Also connect wirelessly to a network and make a presentation or monitor/control your projector over the wireless network. (Wireless LAN included). For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP09 Easy MP wireless connection USB Key.

3x Brighter Colours with Epson
Epson iProjection App

Display and control content from your iPhone, iPad or iPod and Android devices with the Epson iProjection App on any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.

3x Brighter Colours with Epson
Low Cost of Ownership & Maintenance

The EB-W120 utilises a lamp priced at $159NZ and makes use of a High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance.

Lamp life for the EB-W120 has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in ECO mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you peace of mind. By the time you need to change the lamp in these products, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.

Maintaining the EB-W120 is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent. Users can also update projector firmware on their own via Network, a USB thumb drive or USB-B input.* Whichever comes first

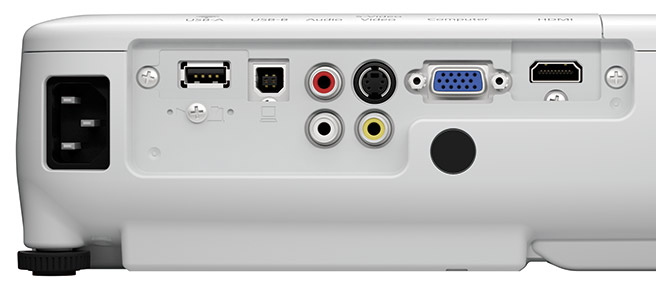

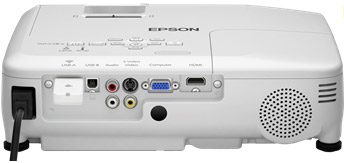

Connectivity Panel
PRODUCT NAME
PRODUCT CODE
WHAT'S IN THE BOX
  Power Cable, Remote Control + Batteries, User's Manual, 1.8m Computer Cable, ELPAP07 Wireless LAN Unit, Storage Case
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch without MLA (D8)
OPTICAL
Zoom 1 - 1.2 (Optical)
Screen Size 33" to 318" [0.9 to 9.0 m] (Zoom: Wide)
33" to 317" [1.08 to 10.8 m] (Zoom: Tele)
Projection Distance 60" screen 1.68 - 2.02 m
Throw Ratio 1.30 (Zoom: Wide), 1.56 (Zoom: Tele)
Projection Lens F Number 1.58 - 1.72
Projection Lens Focal Length 16.9 mm - 20.28 mm
Focus Method Manual
Offset 10:01
Colour Light Output 2,700 Lumens
White Light Output 2,700 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 10,000:1
Lamp Hours Normal: 5,000 Hours / Eco: 6,000 Hours
Lamp Type 200 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x Component (via D-sub 15-pin), 1 x HDMI
Input: Computer 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB 2.0 type A
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red / White), 1 x HDMI
Input: Control 1 x USB 2.0 type B
Input: Epson USB Document Camera Yes
Wireless Connectivity Included
Speaker Output 1W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington lock
Security cable hole
Password protect function
Colour Modes Dynamic, Presentation, Theatre, Photo, Blackboard, Whiteboard
GENERAL
Dimensions D xW x H 234 x 297 x 77 mm
Weight 2.4 kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 2 Years
Power Consumption: Lamp on Normal: 270W / Eco: 201W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal: 37dB / Eco: 29dB
PRODUCT OPTIONS Item Code Description
  V12H005M09 Quick Wireless Key
  V12H002S2Y Floor Standing Tripod Screen
  V13H010L78 Lamp – ELPLP78
  V13H134A32 Air Filter – ELPAF32
  V12H003B23 Ceiling Mount
  V12H003P13 Extension Pole 668-918mm
  V12H003P14 Extension Pole 918-1,168mm

Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.



Product name Globalcode Price (inc GST)
excludes delivery
Order quantity
ACCESSORIES & OPTIONS
ELPSC21B 80" Portable Tripod Screen V12H002S2Y $120.00
ELPMB23 Ceiling Mount V12H003B23 $247.80
ELPFP13 Extension Pole - 450mm V12H003P13 $100.80
ELPFP14 Extension Pole - 918mm to 1,168mm V12H003P14 $145.95
ELPAF32 Air Filter V13H134A32 $25.68
