Back catalogue – Epson EB-X21

- 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- One measurement of brightness is not enough – look for both colour brightness and white brightness. The Epson EB-X21 has:
Colour Brightness: 3,000 lumens
White Brightness: 3,000 lumens - Optional Wireless connection to your laptop and mobile device – connect directly to your computer, smartphone or tablet, without wires (wireless LAN not included).
- Wide Ranging Connectivity – The EB-X21 provides a broad range of connectivity allowing you to input a wide range of devices.
- Low Cost of Ownership – The EB-X21 utilises a lamp priced at $159 for up to 6,000 hours, and makes use of a High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance.

Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*.
One brightness measurement (lumens) is not enough. A projector’s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

Display and control content from your iPhone, iPad or iPod and Android devices with the Epson iProjection App on any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.

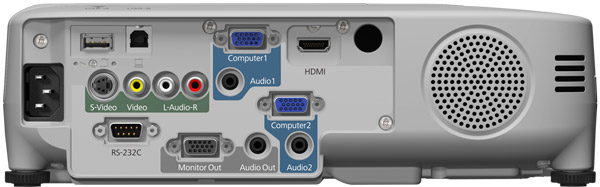

The EB-X21 is very versatile in the classroom or office, and features a host of input options. The unit boasts HDMI, Video, S-Video, 2x VGA, USB A & B, 2 x Audio In, and RS232C inputs. Outputs include; Monitor Out and Audio Out.

Easy integration and advanced connectivity features allow you to evolve your classroom or office as you incorporate additional technology. These projectors can also be connected directly to the Epson DC06 Visualiser to help facilitate effective presentations and lessons without the need for a PC.

The EB-X21 utilises a lamp priced at $159 and makes use of a High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance. Lamp life for the EB-X21 has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in ECO mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you peace of mind. By the time you need to change the lamp in these products, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.
Maintaining the EB-X21 is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent. Users can also update projector firmware on their own via Network, a USB thumb drive or USB-B input.
*Whichever comes first

PRODUCT NAME | |||
PRODUCT CODE | |||
WHAT'S IN THE BOX | |||
---|---|---|---|
Epson EB-X21, Power Cable, Remote Control + Batteries, User's Manual, 1.8m VGA Cable, Soft Carrying Case | |||
TECHNOLOGY | |||
Projection System | Epson 3LCD, 3-chip technology | ||
LCD Panel | 0.55 inch with MLA (D8) | ||
OPTICAL | |||
Zoom | 1 - 1.2 (Optical) | ||
Screen Size | 30" to 300" [1.08 to 10.8 m] (Zoom:Wide) 30" to 300" [0.9 to 9.0 m] (Zoom:Tele) |
||
Projection Distance | 60" screen 1.8 - 2.17 m | ||
Throw Ratio | 1.48 (Zoom:Wide), 1.77 (Zoom:Tele) | ||
Projection Lens F Number | 1.58-1.72 | ||
Projection Lens Focal Length | 16.9mm - 20.28mm | ||
Focus Method | Manual | ||
Offset | 8.6:1 | ||
IMAGE | |||
Colour Light Output | 3,000 Lumens | ||
White Light Output | 3,000 Lumens | ||
Resolution | XGA | ||
Native Aspect Ratio | 4:3 | ||
Contrast Ratio | 10,000:1 | ||
Lamp Hours | Normal: 5,000 Hours / Eco: 6,000 Hours | ||
Lamp Type | 200 W UHE | ||
Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
Colour Reproduction | Up to 1.07 billion colours | ||
Colour Processing | 10 bit | ||
CONNECTIVITY | |||
Input: Video | 1 x RCA (Yellow), 1 x S-Video, 1 x Component (via D-sub 15-pin), 1 x HDMI | ||
Input: Computer | 1x D-sub 15-Pin (RGB), 1 x USB 2.0 type B | ||
Input: USB Memory Device | 1 x USB 2.0 type A | ||
Input: Digital | 1 x HDMI | ||
Input: Audio | 1 x RCA (Red/White), 1 x HDMI, 2 x Stereo Mini Jack | ||
Input: Control | 1 x USB 2.0 type B, RS232C | ||
Input: Epson USB Document Camera | Yes | ||
Wireless Connectivity | Optional | ||
Output: Video | 1 x D-sub 15 pin (black moulding) | ||
Output: Audio | 1 x Stereo Mini Jack | ||
Speaker Output | 5W | ||
ADVANCED FEATURES | |||
EasyMP Network & Control | Yes (with optional Wireless LAN Unit) | ||
EasyMP Network Projection | Yes (with optional Wireless LAN Unit) | ||
PC Free Presentations | Yes | ||
USB Plug 'n Play | Yes | ||
AV Mute Slide | Yes | ||
Instant Off | Yes | ||
Direct Power On/Off | Yes | ||
Security | Kensington lock Security cable hole Password protect function |
||
Colour Modes | Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard | ||
GENERAL | |||
Dimensions D x W x H | 297 x 87 x 244 mm | ||
Weight | 2.6kg | ||
Lamp Warranty | 12 months or 750 hours* | ||
Projector Warranty | 2 Years | ||
Power Consumption: Lamp on | Normal: 270W / Eco: 201W | ||
Power Consumption: Standby | 0.29W (communication off) | ||
Noise Level | Normal: 37dB / Eco: 29dB | ||
* Whichever comes first. For more information visit Epson Projector Warranty | |||
PRODUCT OPTIONS | Item Code | Description | |
V13H010L78 | Lamp – ELPLP78 | ||
V13H134A32 | Air Filter – ELPAF32 | ||
V12H418P13 | Wireless LAN Adapter – ELPAP07 | ||
V12H005M09 | Quick Wireless Key – ELPAP09 | ||
V12H003B23 | Ceiling Mount | ||
V12H003P13 | Extension Pole 668-918mm | ||
V12H003P14 | Extension Pole 918-1,168mm | ||
V12H002S2Y | Floor Standing Tripod Screen | ||
V12H321003 | ELP-DC06 Visualiser | ||
V12H594053 | ELP-DC12 Visualiser | ||
V12H500053 | ELP-DC20 Visualiser | ||
