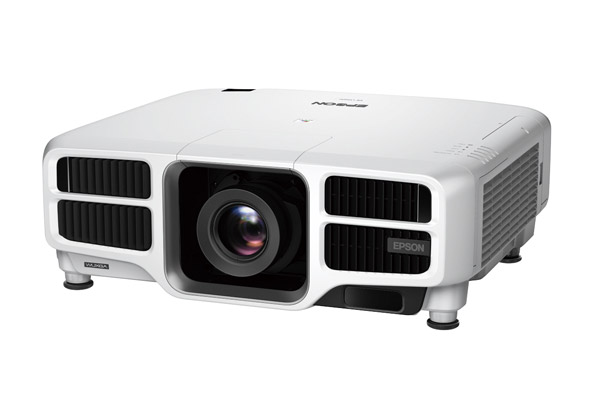

Back catalogue – Epson EB-L1000UNL

KEY FEATURES & BENEFITS
  • Laser Light Source – Experience astonishing quality and reliability
  • Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
  • 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
  • 5,000 Lumens – Deliver captivating images in virtually any venue
  • Colour Uniformity – Keep images consistent and maintenance to a minimum with built-in automatic colour correction
  • Edge Blending – Combine multiple individual images to create one seamless giant image
  • 3x Digital connections – Digital quality and distance flexibility
  • HDBaseT – Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m
  • 360° Installation – Install on any plane, from horizontal to vertical and everything in between
  • Powered lens shift, zoom and focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings
  • Ten optional lenses – Choose the ideal powered lens for your venue from a wide range including ultra-short throw and long throw
  • 24/7 Operation – With advanced installation flexibility and continuous use, Epson's Installation projectors are suitable for almost any application
  • Digital Split Screen – Project two different images from one projector
  • 5 Year Projector Warranty1 – A class leading 20,000 hour or 5 year warranty

*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec.2015 through Nov.2016.

Brighter, vivid projection

White brightness alone cannot bring the True Colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and True Colour to create vibrant and realistic images with 3LCD technology across every projector model.

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors*

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec.2015 through Nov.2016.

Laser Light Source

Experience astonishing quality and reliability with Epson's new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations.

4K Enhancement

Take presenting into the future with support for 4K and the ability to upscale Full HD 1080P content with Epson's 4K Enhancement Technology — which shifts pixels diagonally by 0.5 pixels to double resolution — delivering crisp, high-definition images.

Inorganic Components

Epson’s newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. We’ve also developed inorganic LCD panels – a key component of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector results in bright, vibrant images for long periods.

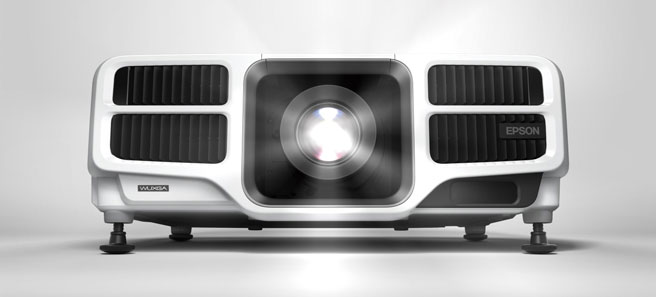

5,000 lumens

Powered by 3LCD technology and Epson's laser optical engine, the EB-L1000UNL is capable of producing White Light and Colour Light Output of up to 5,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.

The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level.

5 Year Warranty1

Experience complete peace of mind with the 20,000 hours or 5 year warranty (whichever comes first). This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.

1Warranted for 5 years or 20,000 hours, whichever occurs first, see www.epson.com.au for full warranty terms and conditions.

Powered Lens Shift, Zoom and Focus

The motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Lens Position Memory
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

Colour Uniformity

Keep images consistent and maintenance to a minimum with a built-in camera that detects images that have become uneven over time, detect subtle inconsistencies between multiple projectors and enables automatic colour correction. You can choose whether to check manually or set up for automatic checking at regular intervals.

High Resolution

Epson EB-L1000UNL features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion.

WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

ADVANCED INSTALLATION FEATURES

Incredible HDBaseT and diverse connectivity

Connect with virtually any system including HDBaseT, SDI, DVI-D, HDMI, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree Projection

The Epson EB-L1000UNL can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Edge Blending

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Corner Wall and Curved Surface Projection

Quickly and precisely correct any vertical or horizontal distortion of an image with Epson's curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.

For advanced projection applications, such as panoramas and curved surfaces on the entire façade of a building, projection mapping software will allow the creative projection of images onto curved surfaces and "bend" images around corners.

Arc Correction

Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Digital Split Screen®

Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

DICOM Simulation Mode

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Collaborative presenting

Multiple users can connect simultaneously to one projector using EPSON iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

Simple control

Use features such as EPSON Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.

Ultra Short Throw Lens2

Choose the perfect lens for your venue, including an ultra-short-throw (UST) zero offset lens for environments with little space. This produces a 200-inch image from only 1.5m away and has lens shift of +17% vertical and +/- 10% horizontally for added flexibility.

Ten optional lenses2

For added flexibility, the EB-L1000UNL offers a total of ten lenses, including middle, wide, long, short and ultra-short throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.

Continuous 24 Hour Use

Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epson’s latest generation of inorganic LCD panels and unique optimised cooling systems, the EB-L1000UNL projector is capable of 24/7 use warranted up to 20,000 hrs. With advanced installation flexibility and continuous use, Epson’s Installation projectors are suitable for almost any application.

New Ceiling Mounts

Both standard and low profile ceiling mounts are available to give you even more installation flexibility across the L Series. Both mounts are now grey in colour to easily integrate into any colour scheme.

2 Lens not included.

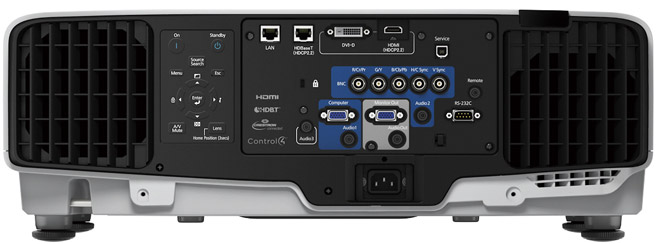

Connectivity Panel
PRODUCT NAME
PRODUCT CODE
WHAT'S IN THE BOX
  EB-L1000UNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Cable Cover, Manual, Projection Software CDROM. (Lens not Included)
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.76-inch (D10)
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 300" [1.53m to 9.44m] (Zoom: Wide)
50" to 300" [2.48m to 15.10m] (Zoom: Tele)
Projection Distance (Standard Lens) 100" screen 3.11m - 5m
Throw Ratio 1.45 (Zoom:Wide), 2.32 (Zoom:Tele)
Projection Lens F Number 1.7-2.3
Projection Lens Focal Length 24.02mm - 38.24mm
Focus Method Powered
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 430 W
Keystone Correction (Standard Lens) Vertical: ±45°
Horizontal: ±30°
Lens Shift (Standard Lens) Vertical: ±67% (Powered)
Horizontal: ±30% (Powered)
CONNECTIVITY
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DVI-D, HDBaseT
Input: Audio 3 x Stereo mini
Input: Control 1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT 1 x RJ45
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
EPSON Projector Management (Network & Control) Yes
EPSON iProjection (Multi-PC Projection) Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Projection Yes
Corner Wall Projection Yes
Frame Interpolation Yes
360 Degress Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 492 x 586 x 211 mm
Weight Approx. 20.1kg (Including LM08 Lens)
Projector Warranty 5 Years*
Power Consumption: LD On 454W
Power Consumption: Standby 2.4W
Noise Level Normal/Quiet: 34/28 dB

* Or 20,000 hours, whichever comes first.
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.


Product name Globalcode Price (inc GST)
excludes delivery
Order quantity
ACCESSORIES & OPTIONS
ELPLL08 Long Throw Lens V12H004L08 $4,823.58
ELPLM08 Middle Throw Lens 1 V12H004M08 $656.88
ELPLM10 Middle Throw Lens 3 V12H004M0A $2,302.14 Out of stock
Notify me
ELPLM11 Middle Throw Lens 4 V12H004M0B $2,302.14
ELPLM15 Middle Throw Lens V12H004M0F $2,302.14 Out of stock
Notify me
ELPLU03S Short Throw Lens 1 V12H004UA3 $4,275.84
ELPLW05 Wide Throw Lens 1 V12H004W05 $2,302.14
ELPLW06 Wide Throw Lens 2 V12H004W06 $4,823.58
ELPLW08 Wide Throw Lens 3 V12H004W08 $13,907.70
ELPLX01S Ultra Short Throw Lens V12H004X0A $11,183.28
Polarizers for Passive 3D V12H618P01 $450.45 Out of stock
Notify me
ELPAP10 Wireless LAN Adapter V12H731P01 $169.05
ELPAF51 Replacement Filter V13H134A51 $64.20 Out of stock
Notify me
