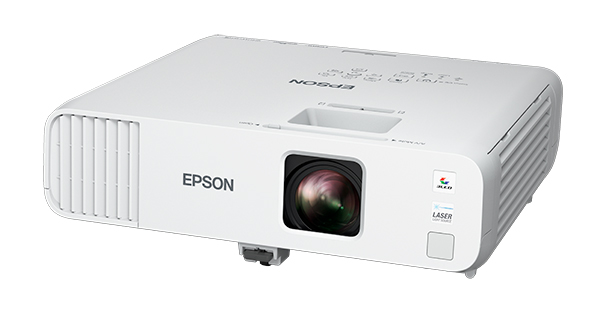

Back catalogue – EB-L200F

- Up to 3 x brighter colours and reliable performance1 – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
- Break through laser technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- Full HD2 resolution – for full HD presentations, videos, images, digital signage and more
- Amazing colour brightness – up to 4,500 lumens colour brightness and 4,500 lumens white brightness
- Miracast support – project your smartphone or tablet screens without a cable connection
- Split screen – connect projectors in a secure wireless network environment
- Compact size – weighing in at only 4kg for easy travel from room to room
- Captivating sound – enjoy a built-in stereo speaker up to 16W for life-like sound
- Simple set-up – auto vertical correction and easy-slide horizontal image correction to help get up and running in no time
- Easy to use – a new simple welcome guide and easy-to-use remote puts all the most used functions right at your fingertips
- Auto power on – simply plug-in a HDMI, USB or VGA cable to turn the projector on
- Up to 3-year projector warranty – enjoy peace of mind
1Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.
2Pixel shifting technology achieves Full HD resolution on screen

Brighter, vivid projection
White brightness alone cannot bring the true colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and true colours to create vibrant and realistic images with 3LCD technology across every projector model.

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.
In fact, Epson projectors have up to 3x brighter colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x brighter colours than competitor 1-chip DLP projectors1.
All Epson projectors list both white brightness and colour brightness specifications, and all have high colour brightness.

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the interruptions during important presentations.
Powered by 3LCD technology and a laser light source, the EB-L200F is capable of producing 4,500 lumens in both colour and white brightness, making it easy to deliver brilliant content in any setting, even well-lit rooms.


Powered by laser light source, the EB-L200F doesn’t require any lamp replacement. Requiring virtually no maintenance for up to 20,000 hours*, the EB-L200F helps to save money and time.
*No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 – 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

Enjoy images in full HD2 resolution and crisp, sharp text without any distortion. Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever- increasing image quality and higher definition.

2Pixel shifting technology achieves full HD resolution on screen
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500”, your audience can easily read and understand the information you’re sharing, especially in a large meeting room or lecture hall. The EB-L200F also enables presenters to stand close to the board without glare in their eyes and shadows covering the screen.

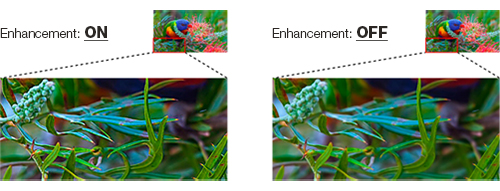

Get a crisper and sharper image with EB-L200F by turning on detail enhancement. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

Split screen allows inputs from two separate sources to be displayed side by side on the same screen. With different layout options you can display video and presentation materials and run video on both screens. This function allows the projector to perform a dual role, eliminating the need for a second screen, perfect for meeting rooms with limited spaces. Additionally, classroom lessons can be made more engaging by connecting a projector with a document camera and a PC or tablet.

EASY WIRELESS CONNECTION

Epson iProjection
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App.
Easily share information on the big image from up to four connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your tablet or mobile device.

Use the moderator function in the Epson iProjection App* to select a single moderator out of the four connected devices. Only the moderator can control the projected content, and they can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side.
*All the devices need to be wirelessly connected to the projector with Epson iProjection App. Moderator control is only available on Windows, macOS, iOS and Android devices.

WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so the projector can connect to an integrated environment over a secure network.

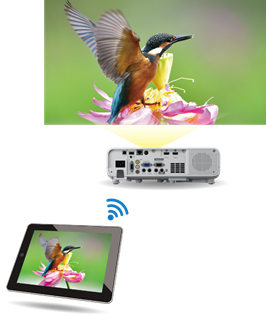

Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast.
FLEXIBLE USE

Have the flexibility to move from large rooms to small spaces with the EB-L200F projector. The display size can reduce down to 40", allowing for collaboration and information sharing even in meeting rooms with restricted space.
Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and easy-slide horizontal image correction. Additionally, optical zoom up to 1 - 1.6x enables you to adjust the image easily and quickly, even in a limited space.


No need to wait longer for setting up a projector. The EB-L200F displays an image in a few seconds the moment the projector is powered on, unlike traditional lamp projectors. By saving time, you can quickly engage and spend more time collaborating with people.
Enjoy fast set-up with the auto power on function, as the projector start-up is activated via USB, HDMI, or VGA cable insertion.

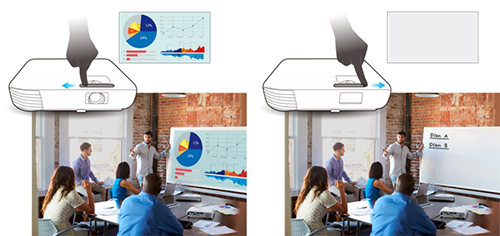

Slide the lens shutter closed at any time and the projector will go into A/V mute (sleep mode) so you can stop and start your presentations when needed. This also means the whiteboard can be used separately when the projector is not in use.
With instant off, simply remove the power cord of the projector, pack up and go.

A powerful 16W speaker delivers clear sound to every corner of the classroom or meeting room, saving money by eliminating the need for additional speakers.

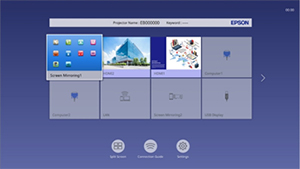

A new, easy-to-use home screen offers quick access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made effortlessly because all the information you need is right there on the screen.

Bring the EB-L200F anywhere with the portable carry case ELPKS71. While being compact and powerful, the projector weighs only 4.1kg, making it easy to carry and collaborate from room-to-room around the office.

PRODUCT NAME | |||
PRODUCT CODE | |||
WHAT'S IN THE BOX | |||
---|---|---|---|
EB-L200F, 1.8m HDMI cable, 1.8m power cable, Remote control, AA battery x 2 | |||
TECHNOLOGY | |||
Projection System | Epson 3LCD, 3-chip technology | ||
LCD Panel | 0.62-inch | ||
OPTICAL | |||
Zoom | 1 - 1.62 (Optical Zoom) | ||
Screen Size | 40" to 500" | ||
Projection Distance | 60" screen 1.72 m | ||
Throw Ratio | 1.33 (Zoom: Wide), 2.16 (Zoom: Tele) | ||
Projection Lens F Number | 1.49 - 1.77 | ||
Projection Lens Focal Length | 18.2 mm - 29.2 mm | ||
Focus Method | Manual Focus | ||
Offset | 10:0 | ||
IMAGE | |||
Colour Light Output | 4,500 Lumens | ||
White Light Output | 4,500 Lumens | ||
Resolution | FHD* | ||
Aspect Ratio | 16:9 | ||
Contrast Ratio | 2,500,000:1 | ||
Hours | 20,000 Hours | ||
Auto Keystone Correction | Vertical: -30 to +30 degrees | ||

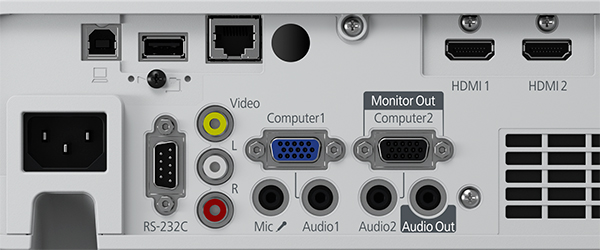

CONNECTIVITY | |||
Input: Video | 1 x RCA Yellow | ||
Input: Computer | 2 x Monitor in (D-sub 15pin), 1 x USB-B | ||
Input: USB Memory Device | 1 x USB-A | ||
Input: Digital | 2 x HDMI | ||
Input: Audio | 1 x RCA (Red/White), 2 x Stereo mini jack | ||
Input: Control | 1 x RS232C | ||
Input: Epson USB Document Camera | 1 x USB-A | ||
Network I/O: | 1 x RJ45 | ||
Wireless Connectivity | Included1 | ||
Output: Video | D-sub 15 pin (black molding) | ||
Output: Audio | Stereo mini jack x 1 | ||
Speaker Output | 16W | ||
ADVANCED FEATURES | |||
Projector Management Software | Yes | ||
iProjection | Yes | ||
Instant Off | Yes | ||
Direct Power On/Off | Yes | ||
Security | Kensington®-style lock provision, Padlock & Security Cable Hole, Wireless LAN Unit Lock | ||
Colour Modes | Dynamic Presentation Cinema sRGB Blackboard |
||
GENERAL | |||
Dimensions D x W x H (excluding feet) | 299 x 325 x 90 mm | ||
Weight | 4.1kg | ||
Projector Warranty | 3 years or 20,000 hours (whichever comes first) |
||
Power Consumption Normal/Eco |
254W/193W | ||
Power Consumption: Standby |
2.0W | ||
Noise Level | 36dB/27dB | ||
1 With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode). *Pixel shifting technology achieves Full HD resolution on screen |
|||
