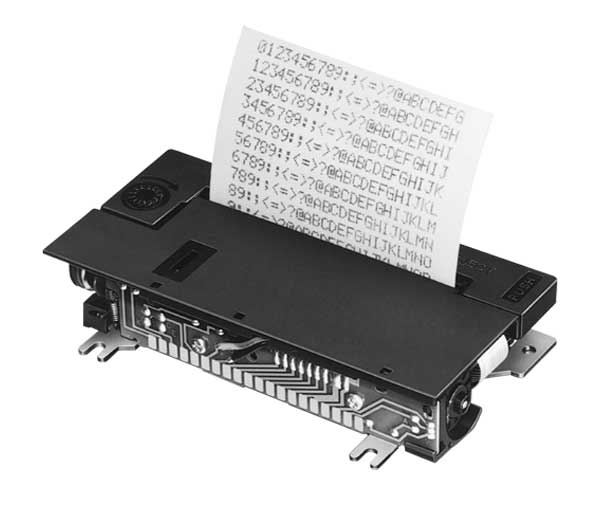

Epson M-190 Series

Ultra-Compact and Light Weight
The M-190 series is only 15.8mm high and weighs a mere 100 grams, making it suitable for incorporating within a variety of compact products.

High Reliability for ECR and EFT Applications
Capable of printing at a speed of 2.5 LPS, the M-190 helps to improve customer service. The fast printing speed is complemented by high reliability - an MCBF of 1.5 x 106lines - ensuring suitability for ECR and EFT applications.

Mount-Compatible with the M-180
The M-190 mount has exactly the same dimensions as the M-180 mount. So no additional costs for producing mount molds are required.

Ni-Cd Battery Operation
The M-190 can be operated on four Ni-Cd batteries.

Impact Mini Printers
PRINTER
PRINTING METHOD Shuttle impact dot matrix
PRINTING FORMAT
FONT 5 x 7
COLUMN CAPACITY M-190: 24 columns
M-191: 32 columns
M-192: 40 columns
M-195: 18 columns
CHARACTER SIZE M-190: 1.7 (W) x 2.6 (H)mm
M-191: 1.3 (W) x 2.6 (H)mm
M-192: 1.1 (W) x 2.6 (H)mm
M-195: 1.7 (W) x 2.6 (H)mm
LINE SPACING 3.7mm (In case of 5 x 7 and 3 dots / line paper feed)
COLUMN SPACING M-190: 2.0mm
M-191: 1.5mm
M-192: 1.2mm
M-195: 2.0mm
NUMBER OF TOTAL DOTS M-190: 144 dots / line
M-191: 192 dots / line
M-192: 240 dots / line
M-195: 108 dots / line
PRINTING SPEED M-190: 2.5 line / sec.
M-191: 1.9 line / sec.
M-192: 1.5 line / sec.
M-195: 2.5 line / sec.
PRINTHEAD
TERMINAL VOLTAGE 3.3 to 5.2 VDC
PEAK CURRENT Approx. typ 2.5 A / solenoid
MOTOR
TERMINAL VOLTAGE 3.8 to 5.2 VDC (3.8 to 5.5 VDC by Ni-Cd battery)
MEAN CURRENT Approx. 0.35 A
PAPER
DIMENSIONS M-190/M-191/M-192: 57.5 ± 0.5mm (W) x dia. 83mm maximum
M-195: 44.5 ± 0.5mm
TOTAL THICKNESS 0.06 to 0.085mm
COPY CAPABILITY Original + one copy
RIBBON CASSETTE ERC-09/22
AMBIENT TEMPERATURE 0° to 50°C (operating)
RELIABILITY
MECHANISM (MCBF) M-190: 1.5 x 106 lines
M-191: 1.1 x 106 lines
M-192: 0.9 x 106 lines
M-195: 1.5 x 106 lines
PRINTHEAD LIFE M-190: 1.5 x 106 lines
M-191: 1.1 x 106 lines
M-192: 0.9 x 106 lines
M-195: 1.5 x 106 lines
OVERALL DIMENSIONS 91.0mm (W) x 46.9mm (D) x 15.8mm (H)
WEIGHT Approx. 100g
