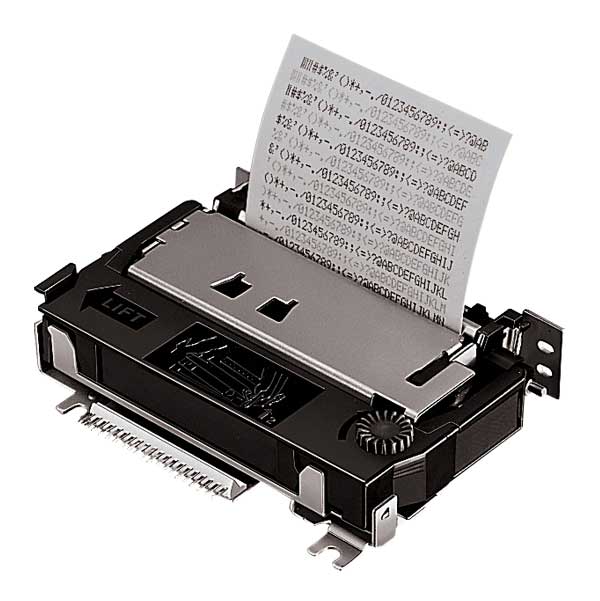

Back catalogue – Epson M-260 Series
Impact Mini Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINTING METHOD | Shuttle impact dot matrix | |||||
| PRINTING FORMAT | ||||||
| FONT | 7 x 7 | |||||
| COLUMN CAPACITY | M-250: 30 columns M-260: 42 columns M-255: 30 columns M-265: 42 columns |
|||||
| CHARACTER SIZE | 1.3 (W) x 2.9 (H) mm | |||||
| LINE SPACING | 4.2mm (In case of 7 x 7 font and 3 dots / line paper feed) | |||||
| COLUMN SPACING | 1.6mm | |||||
| NUMBER OF TOTAL DOTS | M-250: 150 dots / line M-260: 210 dots / line M-255: 150 dots / line M-265: 210 dots / line |
|||||
| PRINTING SPEED | M-250/M-260: 2.3 lines / sec. (at 13.2 VDC) M-255/M-265: 2.3 lines / sec. (at 26.4 VDC) |
|||||
| PRINTHEAD | ||||||
| VOLTAGE | M-250/M-260: 12 VDC ± 10% M-255/M-265: 24 VDC ± 10% |
|||||
| PEAK CURRENT | M-250/M-260: Approx. 2.2 A / solenoid M-255/M-265: Approx. 1.6 A / solenoid |
|||||
| MOTOR | ||||||
| VOLTAGE | M-250/M-260: 12 VDC ± 10% M-255/M-265: 24 VDC ± 10% |
|||||
| MEAN CURRENT | M-250/M-260: Approx. 0.2 A M-255/M-265: Approx. 0.15 A |
|||||
| PAPER | Roll Paper | |||||
| DIMENSIONS | 76 ± 0.5mm (W) x dia. 83mm max. / 57.5 ± 0.5 (W)mm x dia. 83mm max. | |||||
| TOTAL THICKNESS | 0.2mm maximum | |||||
| COPY CAPABILITY | Original + one copy | |||||
| RIBBON CASSETTE | ERC-09/22 | |||||
| AMBIENT TEMPERATURE | 0° to 50°C | |||||
| RELIABILITY | ||||||
| MCBF | 1.5 x 106 lines | |||||
| PRINTHEAD LIFE | 7.5 x 106 characters / wire | |||||
| SAFETY STANDARDS | UL478 / CSA220 recognised products are available on request | |||||
| DIMENSIONS | 122.0mm (W) x 83.6mm (D) x 25.4mm (H) | |||||
| WEIGHT | Approx. 340g | |||||
