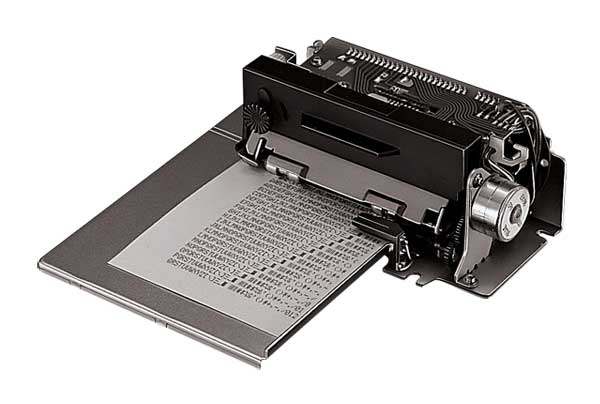

Back catalogue – Epson M-290
Easy Terminal Design
The M-290 is smaller and thinner than any other slip printer in the world. For terminal designers, this means greater ease and freedom of design and superior product innovation.
Beautiful Print Quality
The high-quality print is extremely clear and legible every time. And in the full graphic mode, up to 42 separate columns can be formatted.
No Limit to Slip Design
The slip can be designed in limitless ways thanks to the use of a stepping motor and numerous advanced features such as forward and reverse paper feed, 25-line fast feed and single-dot feed. Create precisely the slip design that best suits your product.
Impact Mini Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINTING METHOD | Shuttle impact dot matrix | |||||
| PRINTING FORMAT | ||||||
| FONT | 7 x 7 | |||||
| COLUMN CAPACITY | 42 columns | |||||
| CHARACTER SIZE | 1.3 (W) x 2.9 (H) mm | |||||
| LINE SPACING | 4.2 mm | |||||
| COLUMN SPACING | 1.6 mm | |||||
| NUMBER OF TOTAL DOTS | 210 dots (420 positions) / line | |||||
| PRINTING SPEED | Approx. 2.1 lines / sec. (24 VDC) | |||||
| PRINTHEAD | ||||||
| VOLTAGE | 24 VDC ± 10% | |||||
| PEAK CURRENT | Approx. 1.6 A / solenoid | |||||
| MOTOR | ||||||
| VOLTAGE | 24 VDC ± 10% | |||||
| MEAN CURRENT | Approx. 0.15 A (P.F. motor), Approx. 0.3 A (CR motor) | |||||
| PAPER | Slip paper | |||||
| DIMENSIONS | 80 (W) x 80 (L)mm minimum to 182 (W) x 257 (L) mm minimum | |||||
| THICKNESS | 0.09 to 0.35 mm | |||||
| COPY CAPABILITY | Max: Original + four copies at 25°C | |||||
| RIBBON CASSETTES | ECR-27 | |||||
| AMBIENT TEMPERATURE | 0 to 50°C (operating) | |||||
| RELIABILITY | ||||||
| MCBF | 1.5 x 106 lines | |||||
| PRINTHEAD LIFE | 1 x 108 strokes / wire | |||||
| SAFETY STANDARDS | UL478, CSA220 recognised products are available on request. | |||||
| OVERALL DIMENSIONS | 138.0mm (W) x 70.5mm (D) x 59.5mm (H) | |||||
| WEIGHT | Approx. 550 g | |||||
