Back catalogue – Epson M-T102 Series

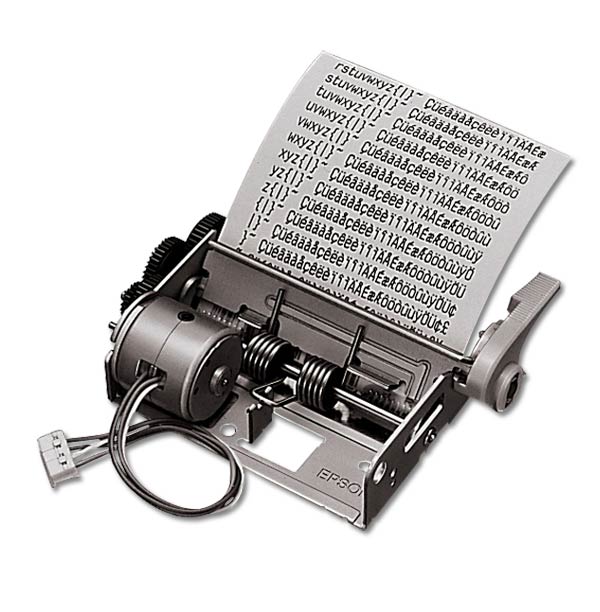

The M-T102 thermal printing series are powerful, but compact.
Performance
The M-T102 series feature outstanding throughput, @ approximately 50mm/ s. The unit is also built tough with a full metal chassis.
The unit offers an optional guillotine, which can be operated on 5V.
Options
The M-T102 series have two options for printer control. Use the LA-T101 LSI to utilise an existing board & minimising space requirements or combine with the BA-T102 controller board. The board has serial & centronics connection options & can be driven with 6V.
Impact Mini Printers |
|||
| PRINTER | |||
|---|---|---|---|
| PRINT METHOD | Thermal line | ||
| PRINTING FORMAT | |||
| NUMBER OF TOTAL DOTS | 384 dots/line | ||
| RESOLUTION | 8 dots/mm | ||
| PRINTING WIDTH | 48mm | ||
| PRINTING SPEED | Approx.40mm/sec(at 6.0 V) | ||
| PAPER FEEDING | |||
| PAPER FEEDING PITCH | 0.0625mm | ||
| PAPER FEEDING SPEED | Max.60mm/sec. Approx.40mm/sec(at 6.0 V) | ||
| SENSOR | |||
| PAPER END | Photosensor | ||
| PRINTHEAD TEMPERATURE | Thermistor | ||
| PRINTHEAD UNLOAD | Microswitch | ||
| POWER SUPPLY VOLTAGE | 5.0 to 7.5 VDC(for printhead & motors) 5VDC ± 5%(printhead control & sensors) |
||
| CONNECTOR | |||
| PRINTHEAD | Pin connector | ||
| MOTOR | Pin connector | ||
| PAPER DIMENSIONS | 57.5±0.5mm(W) dia.50mm | ||
| PAPER THICKNESS | 0.065mm ± 0.005mm | ||
| AMBIENT TEMPERATURE | 0°to ± 50° | ||
| RELIABILITY (MCBF) | 5*106 lines | ||
| CONTROL LSI | LA-T101 | ||
| OPTIONS | Mounting Attachment | ||
| OVERALL DIMENSIONS | 69.5mm (W) x 51.2mm (D) x 20mm (H) | ||
| WEIGHT | Approx. 85 g | ||
