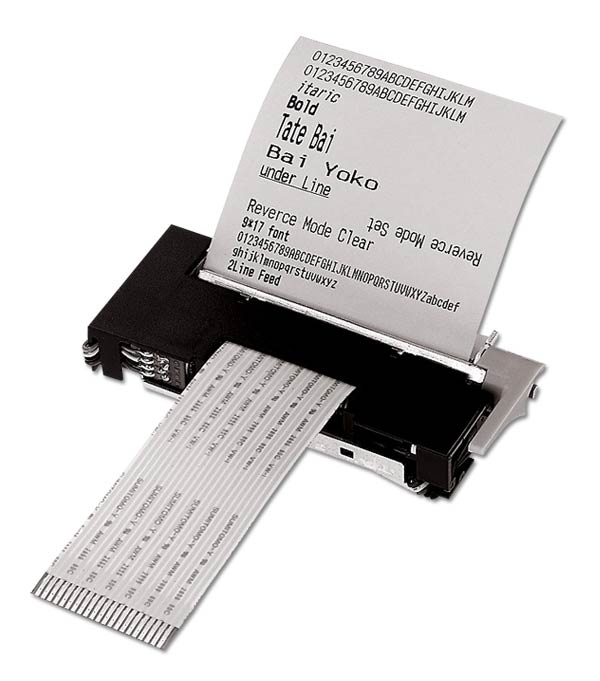

Back catalogue – Epson M-T153
The silent operation of thermal printing in a small package.
Size
The M-T153 has been designed specifically for applications requiring an ultra small printing device. The unit's footprint is a mere 77mm (W) x 38mm(D), but still maintains durability with a metal frame.
Operation
The unit can be operated on a range of voltages. The unit can be driven by 2.7V to 7.4VDC, with an optional lightweight battery unit for portability.
Impact Mini Printers |
|||
| PRINTER | |||
|---|---|---|---|
| PAPER WIDTH | 57.5±0.5 mm | ||
| NUMBER OF TOTAL DOTS | 384 dots / line | ||
| RESOLUTION | 8 dots / mm | ||
| PRINTING SPEED | 62.5 mm / sec max. (at 7.4V), 15 mm / sec (at 3.8V) | ||
| VOLTAGE | 2.7 to 7.4 VDC | ||
| RELIABILITY (MCBF) | 5 x 106 lines (Feeds) | ||
| CONTROL BOARD | Evaluation board for customer's evaluation only. | ||
| OPTIONS | Manual feed knob | ||
| OVERALL DIMENSIONS | 77mm (W) x 38mm (D) x 13mm (H) | ||
| WEIGHT | Approx. 40 g | ||
