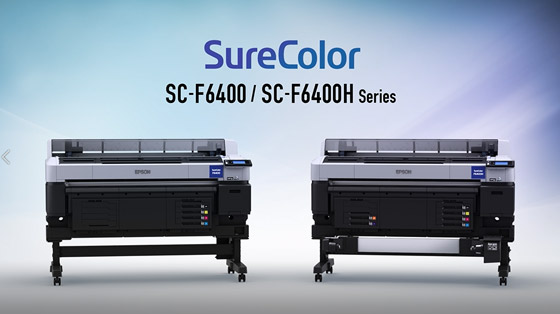

SureColor F6460 - 44"
44" 4c Dye Sub Fabric, Soft Signage & Merchandise Printer
| FABRIC & MERCHANDISE - PRINTER | |
|---|---|
| PRODUCT NAME | SureColor F6460 - 44" |
| Max Media Width | 44 inch (1118mm) wide |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | 1.33" PrecisionCore® MicroTFP with VSDT & Epson Precision Dot |
| Print Modes | Uni & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 600 x 1200dpi |
| INK SYSTEM | |
|---|---|
| Family | Epson Ultrachrome® DS |
| Type | Dye Sublimation |
| Colours | CYMHDk |
| Supply | 4 x 1.6L Pouches |
| PERFORMANCE | ||
|---|---|---|
| Max Speed | 70.8sqm/hr | 1.1 Pass 300 x 600dpi |
| Fast Fabric | 53.5sqm/hr | 1.5 Pass 300 x 600dpi |
| Production Fabric | 38.8sqm/hr | 2.1 Pass 600 x 600dpi |
| Premium Fabric | 19.9sqm/hr | 4.0 Pass 600 x 600dpi |
| Production Hard Surface | 9.1sqm/hr | 6.0 Pass HD 600 x 1200dpi |
| Premium Hard Surface | 7.0sqm/hr | 8.0 Pass HD 600 x 1200dpi |
| Speeds are bi-directional engine only for 44" wide output. Figures are provided for reference only and based on standard applications and quality levels relevant to each model with output produced via Epson Edge Print. Actual performance will depend on the individual user application and quality requirements. Alternative RIPs may operate with alternate modes and speeds. Total throughput times will depend on a number of factors including workflow, paper type, RIP, file format & size, print resolution & ink coverage, networking, heat press equipment, etc. | ||
| MEDIA SUPPORT | |
|---|---|
| Format | Single roll, 2" core (103mm max diam) or 3" core (150mm max diam) |
| Thickness | 0.08-0.5mm (75gsm or greater) |
| Width | 254-1118mm (10"~44") ATU limited to rolls 432-1118mm (17"~44"), 13Kg max |
| Minimum Margins | 3mm left & right, 5mm top & bottom |
| Loading | Spindle-less, single operator front mounting |
| Output | Sheet based with heavy-duty rotary type cutter (2s per A1 sheet, selectable auto & manual operation) Roll based with optional Auto-Take-Up (ATU) |
| OPERATION | |
|---|---|
| Control Panel | 4.3” Colour with touch interface |
| Interface | Super Speed USB & Ethernet 100Base-T/1000Base-T (Ethernet recommended) |
| Memory | 1GB |
| Included Software | Epson Edge Dashboard, Epson Communications Driver and EpsonNet Config (Windows CD) Epson Edge Print PRO & Epson Accounting Tool (Win only) and Epson Edge Dashboard for Mac via Web download) Epson Cloud Solution PORT via (Web service |
| System Requirements | Windows 10/11 (64bit) Mac OS X 10.7 or later Multicore 3.0GHz or faster Processor 8GB RAM, 50GB HDD (250GB SSD recommended) |
| Operational Space | 2118 x 1834 x 1278mm (WxDxH) |
| Operational Temp | 10~35° C (15° to 25° C recommended) |
| Operational Humidity | 20 to 80% with no condensation (40-60% recommended) |
| ENVIRONMENTAL | |
|---|---|
| Power Supply | 240V, 50/60Hz AC, 1.6A |
| Power Consumption | 80W Operating, 36W Ready, 19W Sleep |
| Operating Noise | 53.5dB |
| PHYSICAL (W x D x H) | |
|---|---|
| Printer | 1608 x 745 x 1128mm, 120kg (no ink, media or optional ATU) |
| Packaging | Printer: 2.1 x 0.9 x 1.2m, 186Kg 4c Ink & Media Pack: 1.2 x 0.6 x 0.3m, 19Kg Separate Ink: 0.2 x 0.4 x 0.1, 4.5kg per pk of 2pcs |
| WHAT'S IN THE BOX | |
|---|---|
| Printer, Stand, Power Cord, a set of C+Y+M+HDK 1.6L ink pouches, 1 x Roll Media Adaptor set, 1 x Roll of Epson Transfer Media, 1 x Reusable 2L Waste Ink Bottle, 1 x Head Cleaning Kit, 1 x Cap Cleaning Kit, Epson Edge Print PRO License, Installation/Safety manual, Utility & User manual (CD). NOTES: A heat press (flat or calendar style) should also be sourced separately. The use of a 3rd party radiant heater is recommended for operation at high speed, with heavy ink loads, &/or with the ATU. Please speak with your dealer for recommendations. |
| CONFIGURATION OPTIONS | |
|---|---|
| SCF64601Y | 4c Printer with 1Yr Warranty |
| SCF64603Y | 4c Printer with 1Yr Warranty & 2Yr CoverPlus (3 yrs total cover) |
| SCF64605Y | 4c Printer with 1Yr Warranty & 4Yr CoverPlus (5 yrs total cover) |
| ACCESSORIES & OPTIONS | |
|---|---|
| C12C934701 | Additional/Replacement Roll Media Adapter set |
| C12C934671 | Optional Auto Take Up System |
| SERVICE & SUPPORT | |
|---|---|
| Printers are covered by a comprehensive 1 year warranty that covers all non-consumable parts (including Print Heads) & labour with free-on-site service in all metro areas (regional locations will attract an additional travelling charge). Cover can be extended up to a maximum of 5 years through purchase of optional CoverPlus either with the printer or up to 365 days subsequent to purchase (discounts apply for bundled purchase). Important: Warranty and CoverPlus may be restricted or denied if the user does not perform maintenance & cleaning as outlined in the user guide &/or advised by Epson Australia or New Zealand, if equipment is modified, used outside of specification &/or with non-Epson consumables. CoverPlus requires activation of Epson Cloud Solution PORT and connection of the printer to the service. Please refer to the Warranty and CoverPlus sections of this web site for full details and contact Epson or one of our Authorised Resellers if you have questions. |
| Usage Conditions | |
|---|---|
| Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product. |
