The ultra-short-throw EB-595Wie is the world's first 3LCD, touch-enabled interactive projector. Offering 3x Brighter Colours* than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. With 3300 lumens of colour brightness1 and 3300 lumens of white brightness1, the 595Wie delivers truly dynamic images. And, it takes kinesthetic learning to new heights. With touch- and pen-based interactivity, the 595Wie makes it easy to draw and collaborate using any wall and familiar, intuitive gestures. Teachers can use the Moderator software2 to simultaneously share students' work from multiple devices3.
1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Moderator feature is part of Epson’s EasyMP Multi PC Projection software.
3 Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images – Now with up to 3,300 lumens white brightness and colour brightness.
- Longer lamp life – Up to 6,000 hours# lamp life in ECO mode.
- Higher contrast ratio – Now with 10,000:1 across the entire range.
- Digital connectivity – 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android™ mobile devices.
- PC Interactivity – Comes with Epson's latest and enhanced PC interactive software (Easy Interactive Tools version 3.0). With intuitive user interface and enhanced interactive features.
- Wireless projection and interactivity – Projection and interactive function without the wires when used with the optional LAN card (using peer to peer wireless and Epson's EasyMP Network Projection software version 2.81 or later).
- Multi-user Interactivity – With simultaneous dual pen functionality and finger touch interactivity, teacher and students can annotate at the same time using 2 pens and up to 6 fingers! New smaller pen design now comes with selectable function side button.
- Projector control using Multi-PC projection software with Moderator function – Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- New projector control tool bar – Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
- No driver installation required – Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability – Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp – Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker – Built in audio with the power to fill the room.
# Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Interactive Ultra Short Throw Models - Range at the glance
Model |
EB-575Wi
|
EB-575Wie
|
EB-585Wi
|
EB-595Wi
|
EB-595Wie
|
Interactivity |
Pen only
|
Pen only
|
Pen only
|
Finger and Pen Interactive
|
Finger and Pen Interactive
|
White Light Output |
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
3,300 lumens
|
Colour Light Output |
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
3,300 lumens
|
Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
Native Resolution |
WXGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
Aspect Ratio |
16:10
|
16:10
|
16:10
|
16:10
|
16:10
|
Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
Multi-user Interactivity |
YES
|
YES
|
YES
|
YES
|
YES
|
PC Free Annotation |
YES
|
YES
|
YES
|
YES
|
YES
|
Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
Education Model |
-
|
YES
|
-
|
-
|
YES
|
Low Cost Replacement Lamp |
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
Lamp Hours# |
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

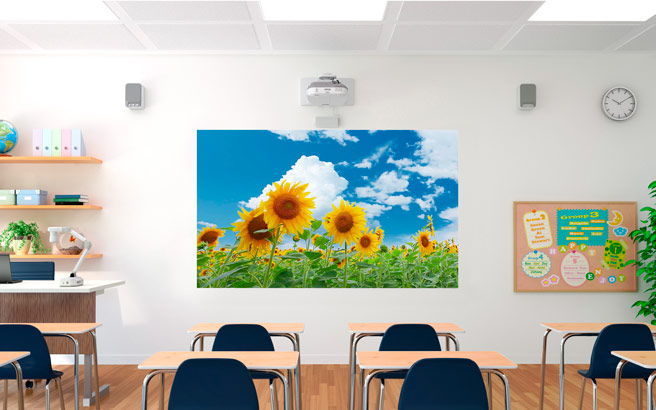

Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.
Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.
Non-Blinding
Even when you stand directly in front of the screen, the light rarely reaches your face. With no glare in your eyes, you'll find it far more pleasant and stress-free to be out front when using the projector.

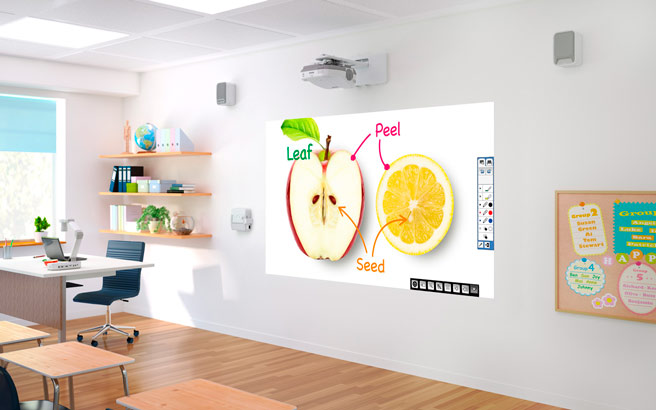

Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.

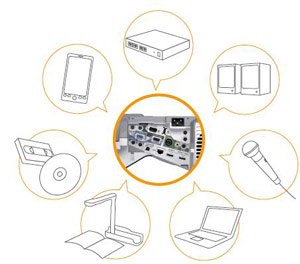

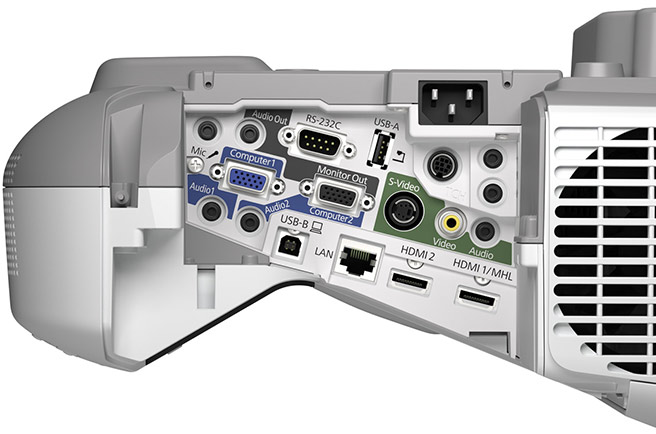

Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE

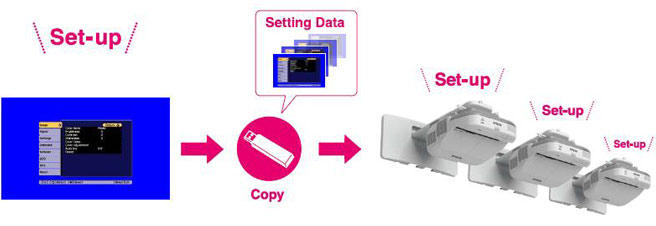

Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.

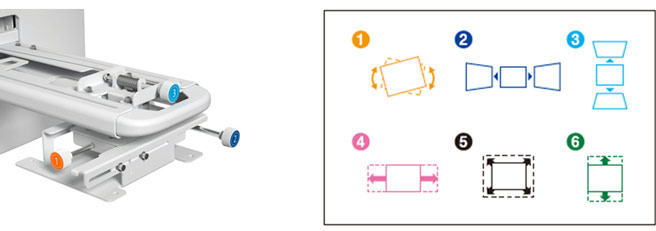

Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.

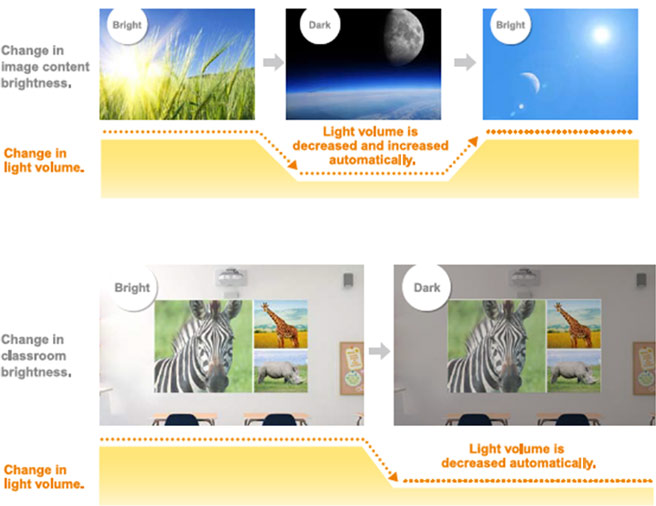

Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

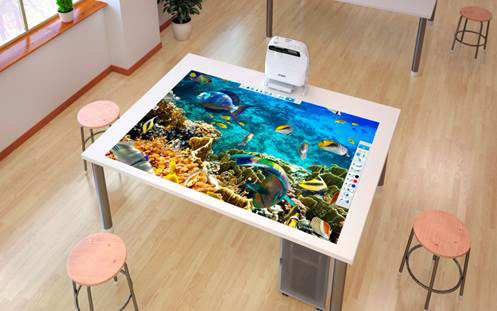

Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.
Significantly Reduced Shadow Interference
Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.

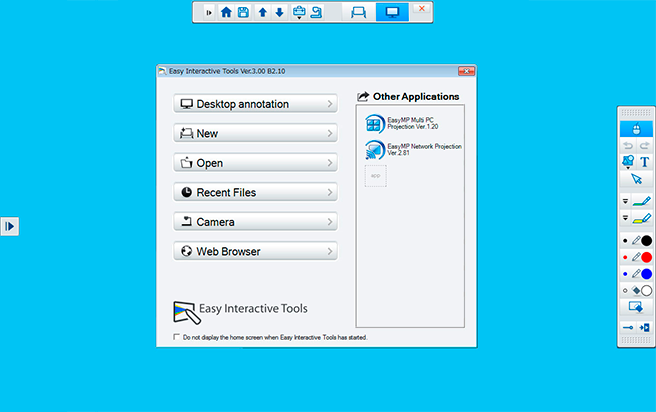

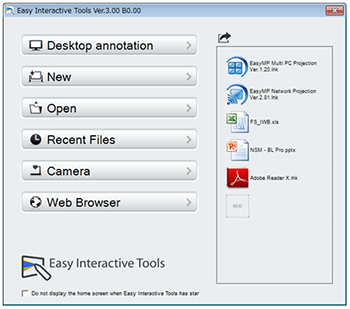

Enhanced Annotation Software – PC Interactive
Epson's PC Interactive software – Easy Interactive Tool v. 3.0 software has been enhanced and now features more user friendly tools, including:
1. Home screen with quick access buttons – for desktop annotation, opening files and accessing the web browser
2. Application shortcuts panel – for accessing your favourite or commonly used applications
3. Two tool bars for annotation and operation purposes – operation functions include source change, A/V mute, Freeze and Volume up/down
4. 'Add text' function – for adding text into the whiteboard using a virtual keyboard
5. Video recording function through Epson's document cameras (sold separately)
6. Intuitive enlarge image functionality
7. Drawings or annotations can be saved as PDF, JPEG, BMP and PNG formats. In addition, the updated EIT v. 3.0 software now also features an original file format (EIT) that allows re-opening and more editing options for saved documents.
Higher Response Speed – Accuracy
The higher response speed and accuracy makes drawing as immediate and responsive as using a pen on a whiteboard.
Auto Calibration
Immediate and accurate calibration, all with the push of one button!
Driverless Installation
Since no drivers are necessary, you don't have to set up your PC before using the projector. Simply connect any PC to start using the interactive functions.
(Windows / Linux only. Driver installation is required for Mac)
Interactive Pens – new design with enhanced functionality
The new interactive pens have been re-designed to make it easier to hold and write than with a conventional pen.
Now also comes with side button with selectable functions such as open tool bar; switch between mouse and pen or switch between pen and eraser.

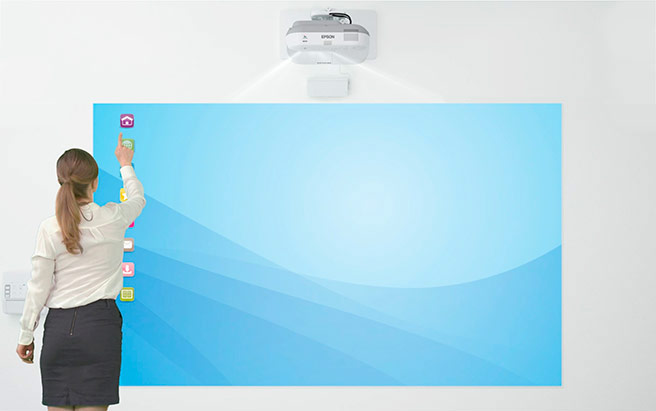

Finger Touch Operation - EB-595Wi Only
In addition to interactive pens, it is now possible to operate intuitively by using your finger on the screen - now you can annotate, open and close files, scroll through pages, move and enlarge objects.
Open and close files
Scroll through pages

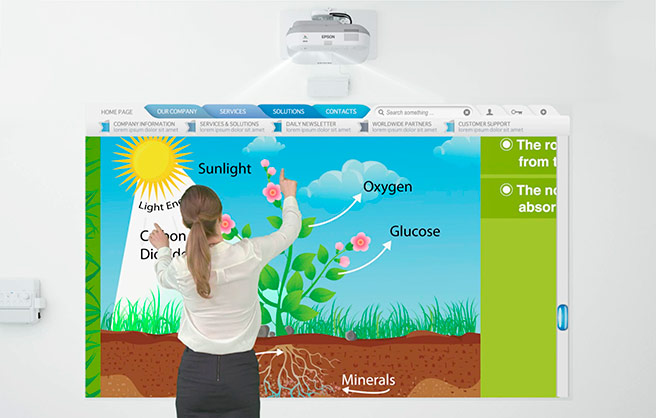

Zoom in on pages or enlarge images
Move, rotate, enlarge or even use your finger as an eraser

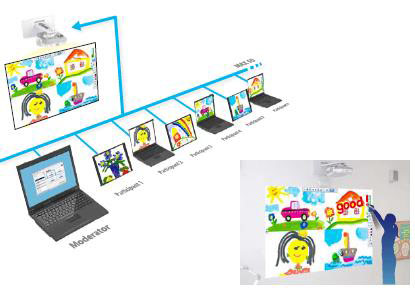

Multi PC Projection with Moderator Function
The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. It is also possible to annotate on the screen image. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.
Multi Use Interactivity
Two people can write simultaneously on the interactive area using 2 pens.
For the EB-595Wi model with finger touch interactivity, users can annotate on the screen with pens or a combination of pens and fingers.

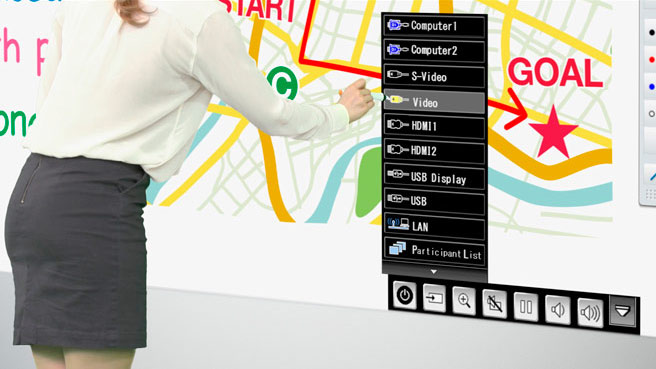

On Screen Projector Operation
Basic projector operation (power ON, source change, volume up/down, A/V mute, etc) can be done by simply clicking the icons shown on the new operation toolbar. Now there’s no need to look for the remote control, when the projector can be easily operated from the screen!

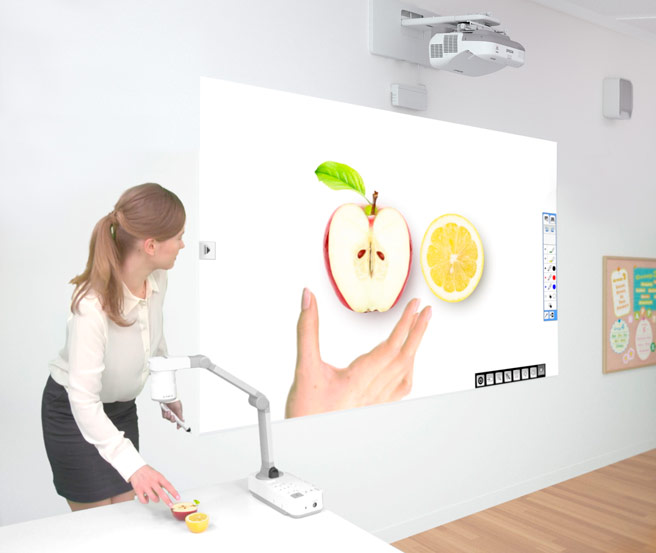

PC-less Interactive Functionality
Interactive functionality is also available without a PC connection, so drawing on the projected screen is now possible when connected to other devices such as document camera or DVD player etc. Even when there is no input source, you can annotate on the screen like a whiteboard.

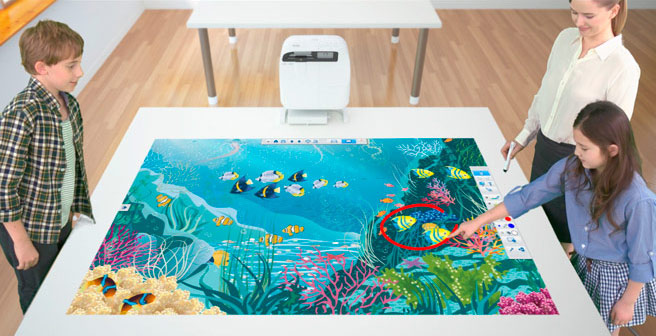

Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into an interactive surface By utilising the optional ELP-MB29 table mount, an ordinary table becomes an engaging platform for interaction and collaboration.
Epson Interactive Projectors and SMART Notebook™ Software
Select Epson interactive projectors are now available with SMART Notebook software. The addition of SMART software to Epson Interactive Projectors provides a significant enhancement in collaborative learning. The full SMART Notebook™ learning software solution powers inspired learning by enabling whole class and anywhere, anytime instruction.
