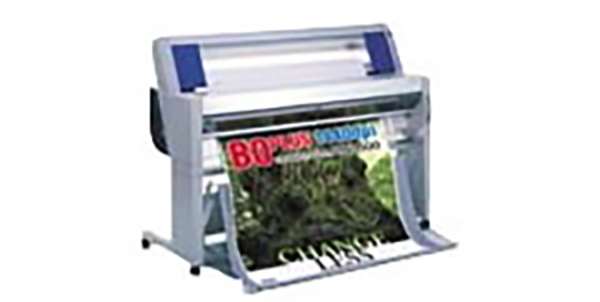

Back catalogue – Stylus Pro 9500
| PRINTER TYPE | ||
|---|---|---|
| PRINTING METHOD | On-demand inkjet (piezoelectric) | |
| NOZZLE CONFIGURATION | 64 nozzles (Black), 64 nozzles x 5 colours | |
| RESOLUTION | Maximum 1440 x 720 dpi | |
| PRINT SPEED* (COLOUR IMAGE AO SIZE) | Up to 6.0m2/hour A0 size About 17 minutes - (720 x 360 dpi, Speed Mode/Premium Glossy Photo Paper) About 25 minutes - (720dpi x 360dpi, Speed Mode/Premium Glossy Photo Paper) About 50 minutes - (1440dpi x 720dpi, Advanced Photo Mode/Premium Glossy Photo Paper) | |
| INK SYSTEM | 6 individual high-capacity colour ink cartridges (220ml/colour) (Black, Yellow, Magenta, Cyan, Light Magenta, Light Cyan) | |
| PAPER HANDLING | ||
| Roll Paper | Dual roll system | |
| Cut Sheet | A single sheet, Auto media cutter | |
| ROLL DIMENSIONS | Core diameter: 2" or 3", outside diameter less than 150mm | |
| MEDIA | ||
| Roll Paper | Media width 297 - 1118mm Media thickness 0.08 - 0.05mm | |
| Cut Sheet | Media size A3 - Super BO Media width 297 - 1118mm | |
| Poster Board | Media width 297 - 1118mm Media length 420 - 728mm Media thickness up to 1.5mm | |
| INPUT DATA BUFFER | 18MB | |
| LANGUAGES | ESC/P2 Raster | |
| INTERFACES | ||
| Standard | Centronics-type 8-bit parallel interface (IEEE-1284 Nibble/ECP mode) Macintosh Serial Port | |
| Option | Expansion slot (Optional Type B interfaces) | |
| TOTAL PRINT VOLUME | 20,000 pages (AO size) | |
| ENVIRONMENTAL CONDITIONS (OPERATING) | Temperature: 10 - 35°C Humidity: 20-80% RH | |
| ELECTRICAL SPECIFICATIONS | Rated Voltage: AC 220V or 240V Rated Frequency: 50-60Hz Power Consumption: Less than 100W (operating) Less than 30W (Low Power Mode) | |
| DIMENSIONS | ||
| Width x Depth x Height | 1688 x 699 x 1259mm | |
| Weight | 96kg with legs | |
| PRINT DRIVERS | ||
| STANDARD | Mac® OS 8.1 to 9.X Microsoft Windows 95/98/2000/NT 4.0 | |
| WARRANTY | One year on-site - subject to location Optional upgrades available | |
| STANDARD ACCESSORIES | Power cord x 1 Roll feed spindle (2") x 2 Roll paper fixing belt x 2 Ink cartridges (one each C,M,Y,K,LC,LM) x 1 set Printer driver utilities x 1set Roll paper sample x 1 roll User manual x 1 | |
| Recommended PC Environment | Windows 95/98/2000/NT4.0 CPU: Pentium II 300MHz or higher processor, memory: 128MB RAM or more HDD: 400MB or more free disk space Macintosh CPU: Power PC604e 300MHz or more System Software: System 7.6.1 or later | |
| Memory | 20MB or more of available memory, 40MB of available memory when background printing is turned on. HDD: 400MB or more free disk space | |
| * Measured PC environment. OS: Windows 98, CPU: Pentium II 359Mhz, RAM: 384MB, IF: Parallel ECP mode. Print speed may vary depending on system configuration, software application and page complexity. | ||
Product Options
| Product Code | Description |
|---|---|
| Interfaces | |
| C823623 | Ethernet interface (10 Base 2/10 Base T) |
| C823633/C823643 C12C824352 (New) |
EpsonNET 10/100 BaseTX Internal Print Server 2 |
| Options | |
| C811041 | Roll feed spindle (2 inch) |
| C811042 | High Tension Roll feed spindle (2 inch) |
| C811051 | Roll feed spindle (3 inch) |
| C811053 | High Tension Roll feed spindle (3 inch) |
| C811122 | Roll Feed Spindle 3" High Tension |
| C811133 | Roll Feed Spindle 2" |
| C811134 | Roll Feed Spindle 2" High Tension |
| C815083 | Auto take-up reel unit |
| C815131 | Paper cutter blade |
| C815172 | Auto Take-Up Reel Unit |
| C815182 | Manual Cutter Unit |
| C815192 | Manual Cutter Blade |
| C823723 | Type-B IEEE 1394 I/F card (Firewire) - Macintosh only OS 8.6 or later |
