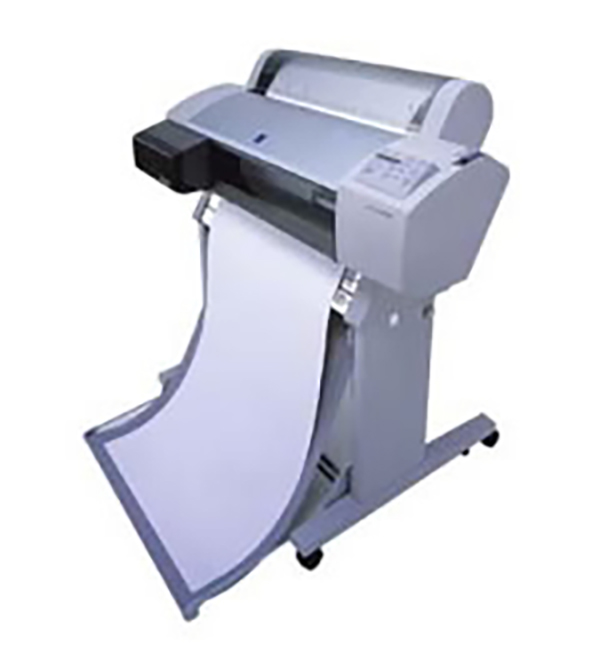

Back catalogue – Stylus Pro 7500
| Printer Type | ||
|---|---|---|
| Printing Method | On-demand inkjet (piezoelectric) | |
| Nozzle Configuration | 64 nozzles (Black), 64 nozzles x 5 colors | |
| Resolution | Max 1440dpi x 720dpi | |
| Printing Speed | Up to 5m2/hour (53ft/hour) A1 size Approx 9 minutes (720dpi x 360dpi, Speed Mode, Premium Glossy Photo Paper) Approx 14 minutes (720 x 360 dpi, Speed Mode, Premium Glossy Photo Paper) About 27 minutes (1440dpi x 720dpi, Advanced Photo Mode, Premium Glossy Photo Paper) | |
| Ink System | Individual 6 colour high capacity ink cartridge (110ml/color) (Black, Yellow, Magenta, Cyan, Light Magenta, Light Cyan) | |
| Paper handling | Roll Paper: single roll system Cut sheet: a single sheet, auto media cutter | |
| Roll Dimensions | Core diameter 2 inch or 3 inch, outside diameter less than 150mm | |
| Media | ||
| Roll Sheet | Media width: 210mm - 610mm Media length: 210mm - 202m Media thickness: 0.08mm - within 0.5mm | |
| Cut Sheet | Media size: A4/LTR - A1 Media width: 210mm - 610mm Media length: 279mm - 728mm | |
| Poster Board | Media size: B2 Media width: 515mm Media length: 728mm Media thickness: up to 1.5mm | |
| Input Data Buffer | 10Mb | |
| Languages | ESC/P2 Raster | |
| Interfaces | ||
| Standard | Centronics - type 8 - bit Parallel interface (IEEE-1284 Nibble/ECP mode), USB | |
| Option | Expansion slot (Optional Type B interfaces) | |
| Total Print Volume | 20,000 pages (A1 size) | |
| Environmental Conditions (Operating) | ||
| Temperature; 10-35°C Humidity; 20-80%RH | ||
| Electrical Specifications | ||
| Rated Voltage | AC 120V or 240V | |
| Rate Frequency | 50-60Hz | |
| Power Consumption | Less than 100W (operating) Less than 15W (low power mode) | |
| Dimensions | ||
| Width x Depth x Height | 1100mm x 572mm x 560mm | |
| Weight | 43.5kg | |
| Printer Drivers (OS) | ||
| Standard | Mac® OS 8.1 to 9.X Microsoft Windows 2000/98/95/NT4.0 | |
| Warranty | One Year on-site Optional up-grades available | |
| Standard Accessories | ||
| 1 x Power cord 1 x Roll feed spindle (2 inch) 1 x Roll paper fixing belt 1 x Set ink cartridges (one each BK, Y, M, C, LM, LC) 1 x Set Printer driver utilities 1 x Roll paper sample 1 x User's manual | ||
| Recommended PC Environment | Windows98/95/NT4.0 (CPU: Pentium II 300MHz or higher processor) Memory: 128MB RAM or more HDD: 400MB or more free disk space Macintosh (CPU: Power PC604e 300MHz or more) System software: system 7.6.1 or later | |
| Memory | ||
| 20MB or more of available memory, 40MB of available memory when background printing is turned on. HDD: 400MB or more free disk space | ||
Product Options
| Product Code | Description |
|---|---|
| Interfaces | |
| C823623 | Ethernet interface (10 Base 2/10 Base T) |
| C823633/C823643 C12C824352 (New) |
EpsonNET 10/100 BaseTX Internal Print Server 2 |
| Options | |
| C811092 | Roll Feed Spindle (2 inch) |
| C811093 | High Tension Roll Feed Spindle (2 inch) |
| C811102 | Roll Feed Spindle (3 inch) |
| C811103 | High Tension Roll Feed Spindle (3 inch) |
| C811122 | Roll Feed Spindle 3" High Tension |
| C811133 | Roll Feed Spindle 2" |
| C811134 | Roll Feed Spindle 2" High Tension |
| C815131 | Paper cutter blade |
| C815172 | Auto Take-Up Reel Unit |
| C815182 | Manual Cutter Unit |
| C815192 | Manual Cutter Blade |
| C823723 | Type-B IEEE 1394 I/F card (Firewire) - Macintosh only OS 8.6 or later |
| C844022 | Stand (including paper basket) |
