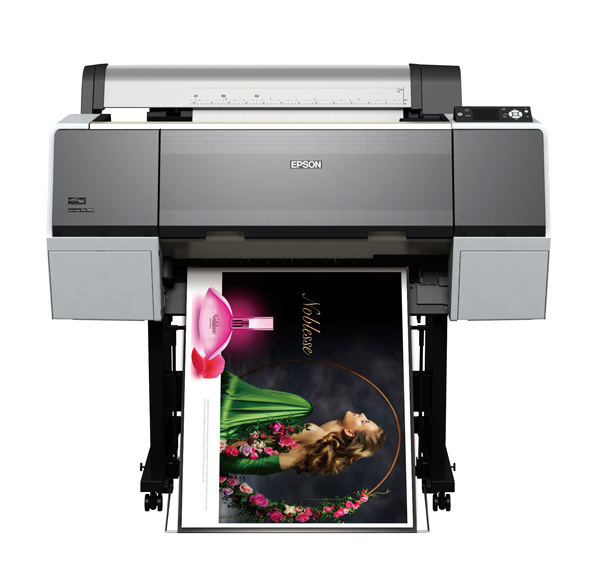

Back catalogue – Stylus Pro 7890 - 24"
Featuring all the advanced design technologies of the Epson Stylus® Pro 900 series, the floor–standing Epson Stylus® Pro 7890 is the perfect printer for environments where print widths of up to 24–inches (610mm) are needed. And with the award winning Epson UltraChrome K3 Ink with Vivid Magenta, the Stylus Pro 7890 generates prints with outstanding gamut cover.
- Epson UltraChrome® K3 Ink with Vivid Magenta
- Epson Micro Piezo TFP print head with advanced coating technology
- Professional media handling up to 24 inch wide
- 8 colour ink set with 3 levels of black ink technology (available in 350 or 700 ml capacity)
- New paper feed mechanism
- 2880 x 1440 dpi maximum print resolution
- Easy to use with low maintenance
- Variable Sized Droplet Technology
- Colour LCD
- USB2.0 and ethernet connections standard
- Epson Stylus Pro 7890 Software Options - click here
| SIZE | ||
|---|---|---|
| Max Print Width | 24 inch (610mm) wide | |
| Max Sheet Size | A1+ | |
| PRINT TECHNOLOGY | ||
| Print Head | Drop-on-demand MicroPiezo™ TFP | |
| Print Modes | Uni & Bi-directional | |
| Print Technology | VSDT, auto head alignment, auto nozzle checking, auto cleaning, ink repelling coating, auto Pk & Mk switching | |
| Nozzle Configuration | 360 per colour | |
| Active Channels | 8 | |
| Max Resolution | 2880 x 1440dpi | |
| Min Droplet Size | 3.5pl | |
| INK SYSTEM | ||
| Family | Epson Ultrachrome® K3 with Vivid Magenta | |
| Type | Aqueous all-pigment | |
| Colours |  9 |
|
| Cartridge Size | 150 / 350 / 700ml | |
| PERFORMANCE (A0 sheet) | ||
| Draft | 360 x 360dpi | 0.8 minutes |
| Normal | 360 x 720dpi | 1.5 minutes |
| Fine | 720 x 720dpi | 3.3 minutes |
| Super Fine | 720 x 1440dpi | 6.8 minutes |
| Super Photo | 2880 x 1440dpi | 13.4 minutes |
Figures represent print times only for the Epson test sample image as shown, produced on Plain (draft – fine modes) and Premium Photo paper (super fine & super photo modes). Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors. |
||
| MEDIA SUPPORT | ||
| Format | Roll and cut sheet | |
| Size | 254-610mm wide x 150mm diameter 3" core / 103mm diameter 2" core roll, A4-A1+ sheet | |
| Thickness | 0.08-0.5mm roll / 0.08-1.5mm sheet | |
| Min Margins | 0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet | |
| Loading | Front spindle-less single roll / top single sheet | |
| Handling | Auto and manual tension control, high-speed heavy-duty rotary auto-cutter (under 2s per page) & Media Barcode System | |
| Output | Integrated folding bin | |
| OPERATION | ||
| Control Panel | 2.5” Colour LCD | |
| Interface | High Speed USB 2.0 Ethernet 10Base-T / 100Base-T |
|
| Included Software | Printer Driver, LFP RemotePanel 2, EpsonNet Config, EpsonNet Print | |
| OS Compatibility | Linux, Mac OS X 10.4, Leopard 10.5, Snow Leopard 10.6, Lion 10.7, Mountain Lion 10.8, Windows 8, Win 7, Win 7 x64, Win Vista, Win Vista x64 & Win XP | |
| Software Compatibility | Compatible with a wide range of design, production, workflow management and RIP software | |
| Memory | 256MB Main + 64MB Network | |
| Language | ESC/P2, ESC/P3 Raster | |
| ENVIRONMENTAL | ||
| Operational Temp | 10° to 35° C (15-25° C recommended) | |
| Operational Humidity | 20 to 80% with no condensation (40-60% recommended) | |
| Power Supply | 100 - 240 V, 50 Hz - 60 Hz AC, 0.5-1A | |
| Power Consumption | 70W Operating / 16W Sleep | |
| Operating Noise | 45dB | |
| PHYSICAL | ||
| Dimensions | 1,356mm x 1,218mm x 667mm (WxHxD) | |
| Weight | 101kg (without ink) | |
| WHAT'S IN THE BOX | ||
| Printer, Stand, Power Cord, Set of 110ml Inks (note 20-50% may be used during initialisation), 1 x Roll Media Adaptor Set, 1 x Maintenance Tanks, Installation / Safety manual, Utility software & User manual (CD) | ||
| CONFIGURATION OPTIONS | ||
| PRO78901YR | Printer with 1 Year On-site Warranty** | |
| PRO78903YR | Printer with 3 Year On-site Warranty** | |
| PRO78905YR | Printer with 5 Year On-site Warranty** | |
| PRO7890NUV | Printer + S-Proofer ILS20 (non-UV), 1 Yr On-site Warranty** | |
| PRO7890NUV3YR | Printer + S-Proofer ILS20 (non-UV), 3 Yr On-site Warranty** | |
| PRO7890UV | Printer + S-Proofer ILS20 (UV Filter), 1 Yr On-site Warranty** | |
| PRO7890UV3YR | Printer + S-Proofer ILS20 (UV Filter), 3 Yr On-site Warranty** | |
| PRO7890SP | Printer + S-Proofer ILS30, 1 Yr On-site Warranty** | |
| PRO7890SP3YR | Printer + S-Proofer ILS30, 3 Yr On-site Warranty** | |
| PRO7890SP5YR | Printer + S-Proofer ILS30, 5 Yr On-site Warranty** | |
| ACCESSORIES & OPTIONS | ||
| C12C811241 | Additional Roll Media Adapter set | |
| C12C890121 | Optional Roll Paper Belt | |
| C12C815331 | Replacement Auto Cutter Blade | |
| C12C890191 | Replacement Maintenance Tank | |
| CTPB3KIT | Optional B3 CTP Plate Adapter | |
| CTPA2KIT | Optional A2 CTP Plate Adapter | |
| SPECTRO24NUV | SpectroProofer ILS20 (non-UV) Upgrade Kit | |
| SPECTRO24UV | SpectroProofer ILS20 (UV Filter) Upgrade Kit | |
| SPECTRO24SP | SpectroProofer ILS30 Upgrade Kit | |
| 1YWPRO7890 | 1 Year On-Site Printer Service Pack** | |
| 2YWPRO7890 | 2 Year On-Site Printer Service Pack** | |
| 1YWSPECTRO | 1 Year On-Site Spectro Service Pack** | |
| 2YWSPECTRO | 2 Year On-Site Spectro Service Pack** | |
| ** Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson Australia or one of our Authorised Large Format Resellers if you have questions or concerns. | ||
