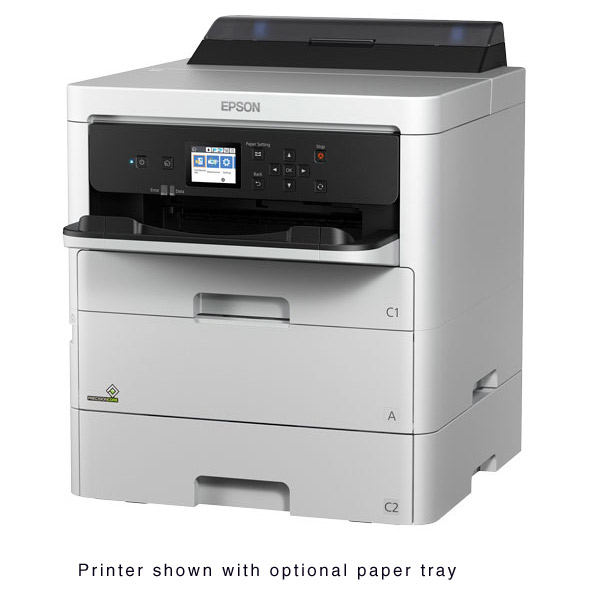

Back catalogue – WorkForce Pro WF-C529R

  • Powered by Heat-Free PrecisionCore® – the next-generation of inkjet printing technology
  • More prints, less cost – Epson ink lasts up to 7 times longer1 than its competition which helps reduce the overall cost of printing
  • Minimise your interventions – Replaceable Ink Pack System lets you print up to 50,000 ISO pages (black), 20,000 (colour) without changing the ink packs2; up to 330 sheets total paper capacity including an 80 sheet rear tray for envelopes and media. An extra tray can be added for up to 830 pages paper capacity, or two extra trays for 1330 pages.
  • Fast print speed, no warm up time – 24 ISO ppm (mono)3; zero second warm-up, fast first page out
  • Open-platform ready – seamless integration with enterprise applications such as PaperCut MF and other workflows; supports PCL4 and PostScript 3
  • Security features – PIN certification for job release; user control access; printer and network settings via Web Config with printer's IP address; SSL/TLS security; IPsec
  • Easy networking and administration – easy network setup designed for managed IT environments
  • Wired and wireless connectivity – includes Wi-Fi Direct®; print from smartphones and tablets, including files from the cloud5
  1. 7 times more prints is comparing Epson XXL inks (50,000 pages Black / 20,000 colour) with the average highest yield toner of the top 4 highest selling MFP's in 0-35 ppm speed segment in the Australian market (Source: IDC October 2018).
  2. Replacement ink pack yields are estimated based on ISO/IEC 24711 test in Default Mode printing continuously. Ink pack yields vary considerably for reasons including images printed, print settings, temperature and humidity. Yields may be lower when printing infrequently. Ink is used for printing and printer maintenance, and ink has to be installed for printing. For print quality, part of the ink from the included ink packs is used for printer startup and a variable amount of ink remains in the ink pack after the "replace ink pack" signal. For details, see www.epson.com/inkinfo.
  3. Black and colour print speeds are measured in accordance with ISO/IEC 24734. Actual print times will vary based on factors including system configuration, software, and page complexity. For more information, visit www.epson.com/printspeed.
  4. Not all media types are supported for PCL printing.
  5. Only printing is supported under Windows Server OS.

PRINTER
PRINTER TYPE
PRINTING METHOD PrecisionCore 4S printhead 4 Colour inkjet
PRINTER LANGUAGE Epson ESC/P®- R, PCL 5 emulation1, PCL 6 emulation3, PostScript 3
MINIMUM INK DROPLET VOLUME 3 droplet sizes, as small as 2.8 picolitres
DUTY CYCLE2 Up to 50,000 pages (Recommended monthly page volume : up to 4500 pages)
RESOLUTION
  4800 x 1200 optimised dpi (with Variable Sized Droplet Technology)
PRINT SPEED
BLACK - SINGLE SIDED PRINTING 24.0 ISO ppm3
COLOUR - SINGLE SIDED PRINTING 24.0 ISO ppm3
BLACK - 2 - SIDED PRINTING 15.0 ISO ppm3
COLOUR - 2 - SIDED PRINTING 15.0 ISO ppm3
PAPER HANDLING
PAPER FEED METHOD Friction feed with paper feeder and automatic document feeder
PAPER SIZES A4, A5, A6, B5, C4 (Envelope), C6 (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18cm, 20 x 25 cm, 16:9, Legal
PAPER HOLD CAPACITY Paper tray input capacity (standard): 250 sheet cassette (plus 80 sheet rear tray A4 Plain paper (80g/m2) / 10 Envelopes). Optional 500 sheet cassette available (two can be added).
OUTPUT TRAY CAPACITY 150 pages
DOUBLE-SIDED PRINTING Yes (internal)
COMPATIBLE PAPER WEIGHT 64 g/m2 ~ 256g/m2
DUPLEX Yes (Automatic)

GENERAL
OPERATING SYSTEMS
PRINTER DRIVERS* Operating Systems Windows® 8.x (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Vista® (32-bit, 64-bit), Windows XP SP3 (32-bit), Windows XP Professional x64 Edition, Windows Server® 2012 R24, Windows Server 20124, Windows Server 20084, Windows Server 2008 R24, Windows Server 2003 R24, Windows Server 20034, Mac OS X®, 10.5.8 – 10.10.x7, Mac OS X Server5
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100 ~ 240V Universal (Automatic)
RATED FREQUENCY 50 ~ 60Hz
POWER CONSUMPTION

 Approx. 24W Standalone copying (ISO/IEC 24712)
Approx 1.2W Sleep Mode
NOISE LEVEL
NOISE LEVEL Power: 5.3 dB(A)
Pressure: 52 dB(A)
CONNECTIVITY
STD CONNECTIVITY High–Speed USB — (compatible with the USB 2.0 Specification)
Wireless LAN IEEE (802.11 b/g/n)6
Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T)
Wi-Fi Direct6
NETWORK PROTOCOLS TCP/IP v4/v6
NETWORK PRINTING PROTOCOLS IPP, LDP, Port 9100, WSD
NETWORK MANAGEMENT PROTOCOLS SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, Ping, SLP, WSD, LLTD
CONTROL PANEL Mono LCD Display panel
WLAN SECURITY WEP 64 Bit, WEP 128 Bit, WPA PSK (AES)
PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY)
SOFTWARE TOOLS Epson Printer Driver
PCL 5 Driver, PCL 6 Driver emulation, PostScript 3
WARRANTY
STANDARD WARRANTY 12 Months (on-site) – Please refer to Epson Warranty Terms and Conditions
DIMENSIONS
DIMENSIONS 425mm x 535mm x 513mm (Width x Depth x Height)
WEIGHT 11.4kg
INK PACKS & YIELDS
INK TYPE DURABrite Ultra pigment ink (smudge, fade and water resistant)
INK PALLETTE Cyan, Magenta, Yellow and Black
INK PACK CONFIGURATION 4 Individual Ink Packs
FADE RESISTANCE / PRINT LONGEVITY Up to 118 years7
REPLACEMENT INK PACKS8
XXL INK PACK (Black) C13T01D100 (50,000 page Yield)
XL INK PACK (CMY) C13T01D200 / C13T01D300 / C13T01D400 (20,000 page Yield)
L INK PACK (Black) C13T01C100 (10,000 page Yield)
STD INK PACK (CMY) C13T01C200/ C13T01C300 / C13T01C400 (5,000 page Yield)

Specification Notes:

1 Not all media types are supported for PCL printing.
2 Monthly duty cycle up to 50,000 is the highest duty a user could expect in a month, based on near constant operation of a device of this kind. It is not recommended that the device be run at this duty. For best device performance, run the device at the recommended duty of up to 4,500 pages per month.
3 Black and colour print speeds are measured in accordance with ISO/IEC 24734. Actual print times will vary based on factors including system configuration, software, and page complexity. For more information, visit www.epson.com/printspeed
4 Only printing is supported under Windows Server OS
5 Some applications and/or functions may not be supported under Mac OS X.
6 Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.
7 Display permanence based on accelerated testing of prints displayed under glass in indoor display conditions; album permanence based on accelerated testing of prints in dark storage conditions. Actual print stability will vary according to media, printed image, display conditions, light intensity, temperature, humidity and atmospheric conditions. Epson does not guarantee the longevity of prints. For maximum print life, display all prints under glass or UV filter or properly store them.
8 Replacement ink pack yields are estimated based on ISO/IEC 24711 test in Default Mode printing continuously. Ink pack yields vary considerably for reasons including images printed, print settings, temperature and humidity. Yields may be lower when printing infrequently. Ink is used for printing and printer maintenance, and ink has to be installed for printing. For print quality, part of the ink from the included ink packs is used for printer start-up and a variable amount of ink remains in the ink pack after the "replace ink pack" signal. For details, see www.epson.com/inkinfo


This printer is designed to function only with genuine Epson inks and not with third party ink cartridges. The printer may not function properly or at all if you use third party inks.
