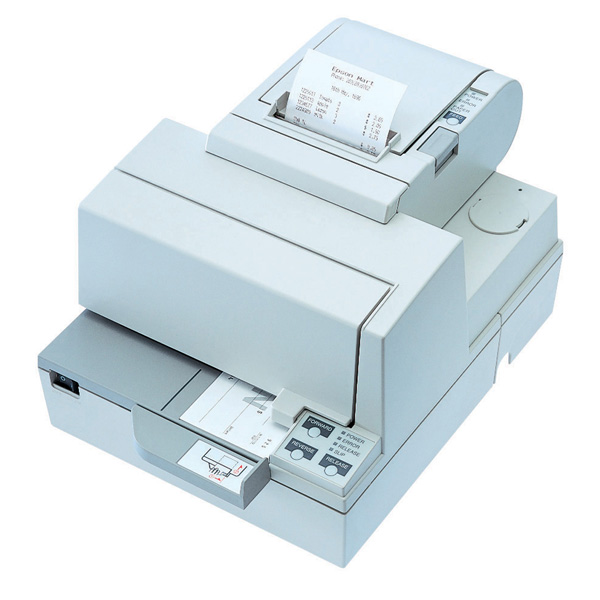

Back catalogue – Epson TM-H5000II
KEY FEATURES & BENEFITS
Fast and powerful multifunction printer
The speedy yet quiet TM-H5000II boasts a thermal print head for beautiful receipts and a dot-matrix print head for sharp slips as large as A4 size. This high-performance, multifunction printer supports a wide variety of applications. It also sports a user-friendly design, including such standard features as a convenient drop-in loading system for roll paper and a time-saving auto-cutter that busy operations will appreciate.
Two Different Printing Heads
The TM-H5000II has two printing heads: a thermal head for crisp printing of receipts and an impact head that handles slips as large as A4 size. Two types of printing in one printer make the TM-H5000II a new force in business.
Lightening Fast, Quiet Printing
The TM-H5000II will never keep your customers waiting or distract them with noise. Receipts are printed at amazing speed-28.4 LPS(1/6-inch paper feed). And, they're printed so quietly, you're customers will hardly notice.
User-friendly Design
A new drop-in roll-paper feeding system takes the hassle out of paper replacement. Just drop the paper in. That's it. Moreover, an auto-cutter is standard, so operators can concentrate on giving even better service.
Further, a slip extension table ensures smooth feeding of wide slips. It keeps the paper from snaking, and prevents double-printing and other printing errors.
Also, an ASB function automatically forwards the printer status, allowing operators to constantly monitor the status of the printer.
Supports a Variety of Printing
The TM-H5000II not only supports nine kinds of bar code UPC-A, UPC-E, JAN8(EAN), JAM13(EAN), CODE39, CODE93, CODE128, ITF, and CODABAR, it also prints both ladder and fence bar codes. What's more, you can create a unique receipt design by specifying page mode or downloadable fonts.
Speedy Transaction
Flash memory for digital logos is available on the printer side. Settable up to 384 Kbytes, it speeds up transactions.
Superb Reliability
Epson's world-renowned quality and reliability are reflected in every component and mechanism of the TM-H5000II, ensuring products unsurpassed in performance and dependability.
Multifunction / Hybrid Printers |
|||
| PRINTER SPECIFICATION | RECEIPT | SLIP | |
|---|---|---|---|
| PRINT METHOD | Thermal line printing | 9-pin serial impact dot matrix | |
| PRINT FONT | 9*17 / 12*24 | 7*9 / 9*9 | |
| COLUMN CAPACITY/td> | 56/42 columns | 88/66 columns | |
| CHARACTER SIZE | 0.99(W)*2.4(H)/ 1.41(W)*3.39(H)mm | 1.3(W)*3.1(H)/ 1.6(W)*3.1(H)mm | |
| CHARACTER SET | 95 Alphanumeric 32 International 128*7 Graphic |
95 Alphanumeric 32 International 128*10 Graphic |
|
| CHARACTERS PER INCH | 20CPI / 15 CPI | 16.7CPI / 12.5 CPI | |
| PRINT SPEED | 28.4 LPS(120mm/sec) | 311/233CPS | |
| DATA BUFFER | 4K bytes / 45 bytes | ||
| INTERFACE | RS-232C / Bi-directional parallel/RS-485(option) | ||
| PAPER DIMENSIONS | Thermal roll paper 79.5mm±0.5mm*dia. 83.0mm |
70(W)*70(L) to 210(W)*297(L)mm | |
| PAPER THICKNESS | 0.06 to 0.07mm | 0.09 to 0.36mm | |
| COPY CAPACITY | – | One original and four copies | |
| INKED RIBBON | – | ERC-31(purple, black) | |
| RIBBON LIFE | – | 7*106 characters (purple) 4.5*106 characters (black) |
|
| POWER | 24VDC±10% | ||
| CURRENT CONSUMPTION | Approx. 1.7A (at 24VDC) | Approx. 1.9A (at 24VDC) | |
| D.K.D FUNCTION | 2 drivers | ||
| RELIABILITY | MTBF: 36*104 hours MCBF: 52*106 lines |
MTBF: 18*104 hours MCBF: 29*106 lines |
|
| EMC STANDARDS | VCCI#1, FCC class A, CE marking | ||
| SAFETY STANDARDS | UL, C-UL, TÜV, GB4943-1995 | ||
| OVERALL DIMENSIONS | 252mm (W) x 331mm (D) x 201mm (H) | ||
| WEIGHT | Approximately 6.5Kg | ||
