Back catalogue – ELP-DC12 Document Camera

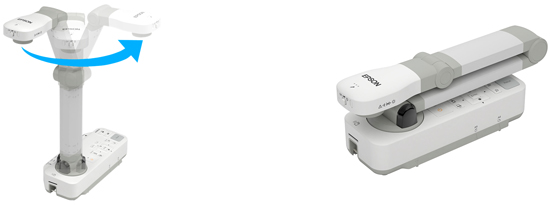

Epson is pleased to introduce the Epson ELP-DC12 Visualiser. This flexible product enables users to turn their existing projector into a fully interactive Education creativity tool. The ELP-DC12 has a sleek, portable and flexible design, with great security features allowing it to be permanently placed in a classroom or carried from room to room. The Visualiser has an easy-to-use interface and numerous I/O ports. Teachers can use the ELP-DC12 to demonstrate the view from a microscope. Showing a dissection in biology class or displaying a historical artifact projected in beautiful detail onto the big screen. Use it to display a lesson live to the projector screen, capture video footage or still images, or simply as a replacement to an overhead projector. Now with bundled advanced application software, a great zoom module, and a built-in microphone, users can take advantage of features such as live annotation, video recording with audio, image capturing and the time lapse function. With Full HD (1080p) output through HDMI, lessons have never looked better.
KEY FEATURES- Remarkable image quality – New Larger optical sensor provides sharp, clear images
- Deliver powerful lessons with amazing detail – 16x digital zoom
- Future Ready connectivity – HDMI digital connectivity for high-quality video content
- Microphone built in – Capture audio/video lessons for future reference
- Microscope Adaptor Included – Connect directly to your microscope & share the microscopic events with the whole class
- Powerful storage capability – Store captured images and video onto SD card, USB device or the 1GB internal memory
- PC Free Annotation – Connect a mouse or Control Device directly via the USB-A port and annotate on the live image, without a PC. Built-in toolbar software will become active
- Time Lapse – Capture the growth of a plant, or organic process over an extended period by setting the camera to combine images taken into a video file
FEATURES & BENEFITS
Remarkable Image Quality
With the power of a high sensitivity 1/2.7" CMOS Sensor, the ELP-DC12 delivers high quality, beautiful images that will bring life to classroom activities. Paired with 16x digital zoom capabilities, capturing the finest details of an object is a breeze. Even large objects are no issue for the ELP-DC12 thanks to its large, A3 sized (297 x 420 mm) capture area.
An impressive 30 frames per second ensures smooth flowing vivid live images and video captures. Demonstrating a detailed activity or task such as a biology dissection to an entire class at once on the big screen has never been so spectacular.

Simplicity of Use
Connect the ELP-DC12 to an Epson projector, and it automatically detects the projector’s native resolution, whether it’s XGA, SXGA, WXGA, 720p or 1080p and optimises output to suit. One touch auto-focus and an easy to understand control panel makes the ELP-DC12 a pleasure to use for teachers and students alike.
Capturing audio along with your video or live footage is simple thanks to the built in microphone. Brightening up the environment is as simple as turning on the incorporated LED lighting system with a single press of a button. Users can even upload footage to popular web sites such as www.youtube.com !
The ELP-DC12 can also function in split screen mode. With this functionality users can capture and display images live, from the on board memory or SD Card/USB sources to add an additional level of creativity to a lesson. For example, a science teacher might choose to display both a list of instructions and a live execution of a science experiment simultaneously, or a music teacher might demonstrate how to play a piece of music with the musical notation in the second window.
The ELP-DC12 also features an adapter which enables users to connect to a broad range of microscopes.
Powerful Storage Capability
A full 1GB of internal memory as well as an SD card slot and ability to read USB memory enables users to capture and store directly to the ELP-DC12. Store images and video to an SD card or USB Stick and use them in presentations at a later date.

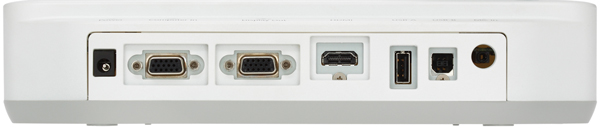

Connectivity Panel
PRODUCT TYPE | Document Camera | |||
---|---|---|---|---|
PRODUCT NAME | ||||
PRODUCT CODE | ||||
WHAT'S IN THE BOX | Epson ELPDC12 Visualiser, External AC Power Adaptor with Power Cord, VGA Cable, 3m USB Cable, Application Software CD, User's Manual Set CD ROM, Remote Control, 2 x AA Batteries, Microscope Adaptor,Quick Start Guide | |||
SPECIFICATIONS | ||||
CAMERA | Pick-up Device | 1/2.7" CMOS Sensor | ||
Effective Pixels | 1920 (H) x 1080 (V) 2 Megapixels | |||
Frame Rate | Analog/USB | MAX 30Fps | ||
Output |
Analog USB HDMI Composite Video |
SXGA/XGA/WXGA/1080p QVGA/CGA/SVGA/XGA/SXGA 480p/720p/1080p NTSC/PAL |
||
Illumination System: Upper | White LED x 2 | |||
Brightness | 250lx or above | |||
OPTICS | Lens | F2 | ||
Shooting Area | 11.7" x 16.5" (XGA) 11.7" x 20.7" (1080p) |
|||
Digital Zoom | 16x | |||
Focus | Auto | |||
Iris | Auto | |||
FUNCTIONS | ||||
White Balance | Auto | |||
Exposure | Auto | |||
Brightness | Auto | |||
Image Rotation | Horizontal/Vertical ± 90 Degrees | |||
Internal Memory | 1GB Internal, SD Card Slot, USB Memory | |||
Image Freeze | One-touch | |||
Source Search | PC/Visualiser | |||
Aspect Ratio | Auto Detect | |||
Digital Scroll Pan/Tilt | Auto | |||
Flicker Reduction | Auto | |||
Negative/Positive Conversion | Available | |||
Colour & Black & White Selection | Available | |||
Split Screen | Available | |||
Time Lapse | Available | |||
Saving Formats | JPG/BMP/WMV/MPG/AVI/MOV | |||
Slideshow | Available | |||
Video Capture | Available | |||
INTERFACE | ||||
Input | VGA, in-built MIC, Mic-Input, USB-A (for PC Free Annotation) | |||
Output | VGA, USB-B, HDMI, Composite Video | |||
DIMENSIONS | ||||
Open/Unfolded | W 210 x D 312 x H 476mm | |||
Closed/Folded | W 340 x D 124 x H 125mm | |||
Weight | Approx. 2.8kg | |||
OTHER | ||||
Security | Kensington Lock Support | |||
Metal Security Bar | ||||
2 x Security Mounting Holes | ||||
Operating Temperature | 5 °C to 35 °C | |||
Operating Humidity | 20%-80% | |||
Power Supply Voltage | 100V-240V AC/DC | |||
Power Frequency | 50/60Hz | |||
Output Voltage of AC Power Adapter | DC 12V | |||
Power Consumption | 13w | |||
Power Consumption (Stand-by Mode) | 0.48W | |||
COMPATIBILITY for OS | Windows 8, Windows 7, Windows Vista, Windows XP SP2 or Later MAC OS X 10.5x, 10.6x, 10.7x and 10.8x |
|||
WARRANTY | ||||
STANDARD WARRANTY | 1 year | |||
* For more information visit Epson Projector Warranty | ||||
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
