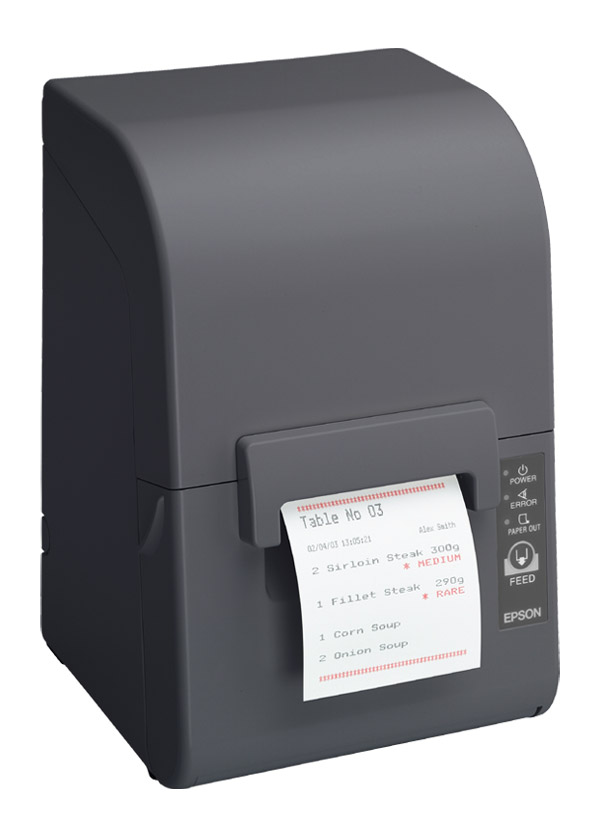

Back catalogue – Epson TM-U230
Impact Dot Matrix Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | 9-pin, serial impact dot matrix | |||||
| PRINT FONT | 7 x 9 / 9 x 9 | |||||
| COLUMN CAPACITY | 40 or 42 columns / 33 or 35 columns | |||||
| CHARACTER SIZE | 1.2(W) x 3.1 (H) mm / 1.6 (W) x 3.1 (H) mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 32 International characters, 128 x 8 Graphic characters, Traditional and Simple Chinese | |||||
| PRINT SPEED | Approx. 3.5 LPS (40 columns, 16CPI) / Approx. 6.4 LPS (16 columns, 16 CPI) | |||||
| DATA BUFFER | 1 KB/ 16 KB | |||||
| INTERFACE | RS-232C, Bi-directional parallel, Dealer Option: RS-485, USB, 10 Base T I/ F |
|||||
| PAPER DIMENSIONS | 76mm ± 0.5mm x dia. 83.0mm (roll) | |||||
| PAPER THICKNESS | 0.06 to 0.085mm | |||||
| COPY CAPABILITY | One original | |||||
| INKED RIBBON | ERC-38 (black, black/red) | |||||
| RIBBON LIFE | Black: 3 x 106 characters B/R: 15 x 105 characters (black) 75 x 104 characters (red) |
|||||
| POWER SUPPLY | AC adapter (included) | |||||
| POWER CONSUMPTION | Approx. 43 W average | |||||
| RELIABILITY | ||||||
| D.K.D. FUNCTION | 2 drivers | |||||
| MTBF | 18 x 104 hours | |||||
| MCBF | 18 x 106 lines | |||||
| EMI STANDARDS | VCCI class A, FCC class A, CE marking, AS/ NZS 3548 class B | |||||
| SAFETY STANDADS | UL, C-UL, TÜV (EN60950) | |||||
| OVERALL DIMENSIONS | 166mm (W) x 168mm (D) x 260mm (H) (Approx. 2.7Kg) | |||||
| PRODUCT OPTIONS | ||||||
| WH-10 | Wall mounting bracket | |||||
