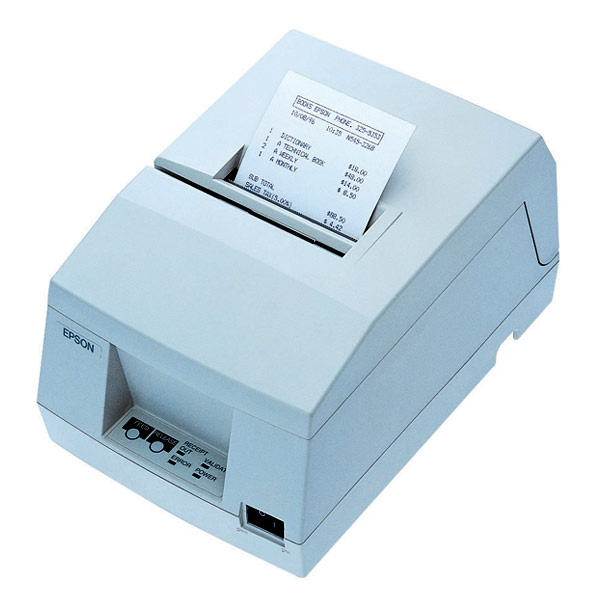

Back catalogue – Epson TM-U325
Impact Dot Matrix Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | 9-pin, serial impact dot matrix | |||||
| PRINT FONT | 7 x 9 / 9 x 9 | |||||
| COLUMN CAPACITY | 40 or 42 columns / 33 or 35 columns | |||||
| CHARACTER SIZE | 1.24 (W) x 3.1 (H) mm / 1.56 (W) x 3.1(H) mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 32 International characters | |||||
| CHARACTERS PER INCH | 128 x 8 Graphic characters 16 or 17.8 CPI / 13.3 or 14.5 CPI |
|||||
| PRINT SPEED | Approx. 3.5 LPS (at 40-column printing) Approx. 6.4 LPS (at 16-column printing) |
|||||
| DATA BUFFER | 4K bytes / 45 bytes | |||||
| INTERFACE | RS-232C / Bi-directional parallel / RS-485 (option) | |||||
| PAPER DIMENSIONS | Receipt: 76mm ± 0.5mm x dia. 83mm Validation: 135 (W) x 70 (L) to 182 (W) x 182 (L) mm (Maximum print lines: 9 lines) |
|||||
| PAPER THICKNESS | Receipt: 0.06 to 0.085 mm / sheet (total thickness: 0.2mm or less) Validation: 0.09 to 0.12mm / sheet (total thickness: 0.09 to 0.31mm, including the thickness of roll paper) |
|||||
| COPY CAPABILITY | One original and two copies | |||||
| INKED RIBBON | ERC-38 (black) | |||||
| RIBBON LIFE | 3 x 106 characters (black) | |||||
| POWER SUPPLY | AC adapter (included), PS-170 (option) | |||||
| POWER CONSUMPTION | Approx. 43 W | |||||
| D.K.D. FUNCTION | 2 drivers | |||||
| RELIABILITY | ||||||
| MTBF | 18 x 104 hours | |||||
| MCBF | 49 x 106 lines | |||||
| EMI STANDARDS | VCCI #1, FCC class A, CE marking | |||||
| SAFETY STANDARDS | UL, C-UL | |||||
| OVERALL DIMENSIONS | 164mm (W) x 240mm (D) x 136mm (H) | |||||
| WEIGHT | Approx. 2.3Kg | |||||
| PRODUCT OPTIONS | ||||||
| PS170 | Power Supply | |||||
