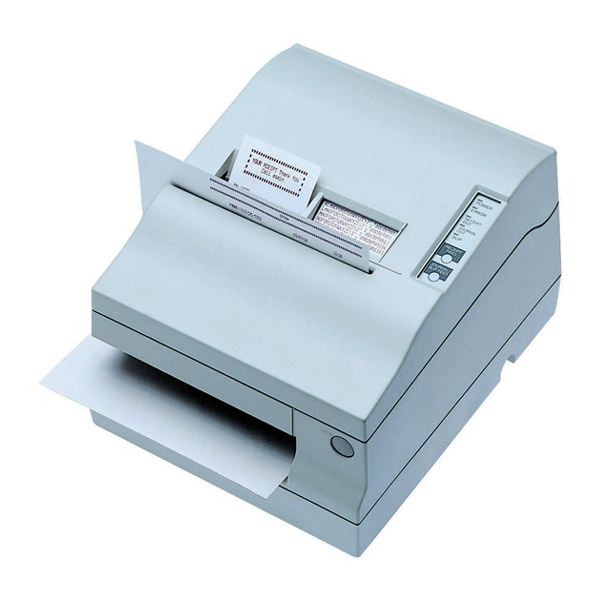

Back catalogue – Epson TM-U950
Impact Dot Matrix Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | 9-pin, serial impact dot matrix | |||||
| PRINT FONT | 7 x 9 / 9 x 9 | |||||
| COLUMN CAPACITY | Receipt (Journal): 40 / 30 columns Slip: 88 / 66 columns |
|||||
| CHARACTER SIZE | 1.3 (W) x 3.1 (H) mm / 1.6 (W) x 3.1 (H) mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 32 International characters, 128 x 8 Graphic characters | |||||
| CHARACTERS PER INCH | 16.7 CPI / 12.5 CPI | |||||
| PRINT SPEED | 311 CPS / 233 CPS | |||||
| DATA BUFFER | 24 Kbytes or 32 bytes | |||||
| INTERFACE | RS-232C / Bi-directional parallel | |||||
| PAPER DIMENSIONS | Receipt (Journal): roll paper 69.5 ± 0.5 (W) x dia. 83mm Slip: 70 (W) x 70 (L) to 210 (W) x 297 (L) mm |
|||||
| PAPER THICKNESS | Receipt (Journal) to 0.09mm Slip: 0.09 to 0.36mm, validation to 0.09 to 0.2mm |
|||||
| COPY CAPABILITY | One original and four copies (for slip) | |||||
| INKED RIBBON | ERC-31 (black) | |||||
| RIBBON LIFE | Black: 3 x 106 characters | |||||
| POWER | 24 VDC ± 10% | |||||
| CURRENT CONSUMPTION | Approx. 1.8A (at 24 VDC) | |||||
| D.K.D. FUNCTION | 2 drivers | |||||
| RELIABILITY | ||||||
| MTBF | 18 x 104 hours | |||||
| MCBF | 18 x 106 lines | |||||
| EMI STANDARDS | VCCI #1, FCC class A, CE marking | |||||
| SAFETY STANDARDS | UL, C-UL, TÜV, CCIB | |||||
| OVERALL DIMENSIONS | 251mm (W) x 298mm (D) x 194.5mm (H) | |||||
| WEIGHT | 5.6Kg | |||||
| Product Options | ||||||
| PS170 | Power Supply | |||||
