| PRODUCT NAME |

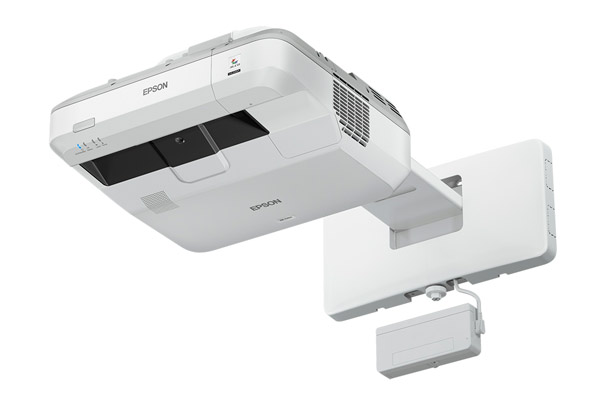

Epson EB-710Ui |
| PRODUCT CODE |
V11H877053 |
| TECHNOLOGY |
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Light Source |
Laser Diode |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.67-inch (D10) |
| OPTICAL |
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
70.0" to 100.0" [40.5 to 59.3cm]
90" screen 53cm |
| Throw Ratio |
0.27 (Zoom:Wide)
0.37 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.6 |
| Projection Lens Focal Length |
4.2 mm |
| Focus Method |
Manual |
| Offset |
5.8:-1 |
| IMAGE |
| White Light Output |
4,000 lumens |
| Colour Light Output |
4,000 lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
2,500,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
| Video I/O - Input |
1x RGB D-sub 15pin
1x RCA Composite |
| Video I/O - Output |
1x RGB D-sub 15pin |
| Digital Input |
3x HDMI (1 supports MHL) |
| Audio I/O - Input |
2x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin |
| USB I/O |
2x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit) |
| Wireless Connectivity |
Optional ELPAP10 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
| EasyMP Network Projector control and projector management via network |
Yes |
| AMX Device Discovery |
Yes |
| Crestron Integrated Partner |
Yes |
| Crestron RoomView |
Yes |
| Extron IP Link |
Yes |
| Control4 |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Easy Interactive Function |
Supported screen size - 70" to 100"
Supports multiple screens
Technology - Infrared
Input devices:Digital Pen (Easy Interactive Pen 1,2), Finger (1-6 fingers)
Calibration:Pen: Auto / Manual (25points), Finger: Manual (16 points) |
| Finger Interactive Unit |
Dimension: 210x95x51mm
Weight: 450g
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision |
| PC Interactive Tool |
Multiple pen/finger support:Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2.
Finger: Up to 6. |
| PC Free Annotation Tool |
Multi-pen support: Yes
Easy Interactive Pen: Up to 2
Finger: Up to 2
Whiteboard function
Projector operation |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Auto Power On |
Yes (PC, USB-B, HDMI1) |
| Security |
* Kensington® - lock provision
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Presentation, Cinema, sRGB, BlackBoard |
| Integrated Mount |
Yes |
| GENERAL |
| Dimensions (excl feet) WxDxH |
494 x 437 x 172mm |
| Weight |
11.2kg |
| Projector Warranty |
3 Years
For more information visit Epson Projector Warranty |
| Power Consumption |
423W (Normal)
332W (ECO) |
| Power Consumption: Networked Standby |
2.0W |
| Power Consumption: Energy Saving |
0.3W |
| Air Filter maintenance cycle |
up to 20,000 hours |
| Fan Noise Level |
38dB (Normal)
27dB (ECO) |
| WHAT'S IN THE BOX |
| Main Unit |
EB-710Ui Projector |
| Power Cable |
5.0M |
| USB Cable Cable |
5.0M |
| Remote Control |
Yes |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
Yes |
| Easy Interactive Pen |
2 Pens |
| Battery for Easy Interactive Pen |
AA x 2 |
| Pen Tray |
Yes |
| Pen tip (Soft) |
x 4 |
| Pen tip (Hard) |
x 4 |
| Pen tip holder |
Yes |
| Light Curtain Finger Touch Unit |
Yes |
| Password Protect sticker |
Yes |
| Mount |
ELPMB53 |
| |
| PRODUCT OPTIONS |
| V13H134A43 |
Air Filter ELPAF43 |
| V12H902040 |
Wall Mount ELPMB53 |
| V12H467053 |
External speakers ELPSP02 |
| V12H731P01 |
Document Camera ELPDC21 |
| V12H773010 |
Easy Interactive Pen 1 (Orange) ELPPN05A |
| V12H774010 |
Easy Interactive Pen 1 (Blue) ELPPN05B |
| V12H775010 |
Replacement Hard Pen Tips ELPPS03 for ELPPN05(New: Hard) |
| V12H776010 |
Replacement Soft Pen Tips ELPPS04 for ELPPN05(New: Soft) |
| V12H758053 |
Wireless LAN ELPAP10 |
