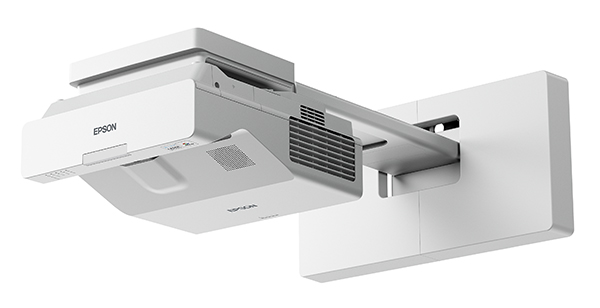

Epson EB-735F

EB-735F

Ultra Short Throw Projectors

HD display for bright and engaging classrooms



PRODUCT NAME EB-735F
PRODUCT CODE V11HA00553
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.61-inch (C2fine)
Pixel Number 2,073,600 dots (1920 x 1080)
Resolution 1080p
OPTICAL
Zoom 1 – 1.35 (Digital)
Screen Size 65" to 120" [37.2 cm to 70.3 cm] @16:9
60" to 110" [36.9 cm to 69.2 cm] @16:6
Projection Distance 76" screen at 44.3cm
Throw Ratio 0.26 (Zoom:Wide)
0.36 (Zoom:Tele)
Projection Lens F Number 1.6
Projection Lens Focal Length 3.7 mm
Focus Method Manual
Lens Shift N / A
Colour Light Output 3,600 lumens
White Light Output 3,600 lumens
Native Aspect Ratio 16:9
Contrast Ratio Over 2,500,000:1
Light Source Laser
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Quick Corner Yes
Auto Setup Yes
Refresh Rate 192 Hz / 240 Hz
CONNECTIVITY
Video I/O - Input 2x RGB D-sub 15pin
1x RCA Composite
Video I/O - Output 1x RGB D-sub 15pin (shared)
Digital Input 3x HDMI
Digital Output N/A
Audio I/O - Input 3x Stereo mini
1 x Mic-In Stereo Mini
Audio I/O - Output 1x Stereo mini
Control I/O 1 x RS232C (D-sub 9 pin)
USB I/O 1 x Type A (for USB Memory, USB Document Camera)
1 x Type B (Firmware update, Copy OSD Settings)
Network I/O: 1 x RJ45 (100Mbps) Wired LAN
Touch Interactive N / A
Wireless Connectivity Built-in Miracast and Built-in Wireless

Optional Wireless LAN unit (ELPAP11)*

*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode).

Speaker Output 1 x 16 W Stereo
ADVANCED FEATURES
Epson Projection Management Software Yes
Partner Standards Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Easy Interactive Tools N / A
Firmware Update Network via LAN cable,
USB A via USB thumb drive,
USB B via USB cable
Copy OSD settings Network via LAN cable,
USB A via USB thumb drive,
USB B via USB cable
Wireless LAN Security WPA2/WPA3-PSK (Personal),
WPA2/WPA3-EAP (Enterprise)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes
Security Padlock & Security Cable Hole
Kensington® lock provision
Wireless LAN Unit Lock
Password protection
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Wall Mount Optional (ELPMB62)
GENERAL
Dimensions (excl feet) WxDxH 395 x 356 x 133 mm
Weight 5.7kg
Projector Warranty 3 Years
Power Consumption: Projector on 255 W
Power Consumption: Standby 2 W
Noise Level (Normal / Eco) 36 / 26 dB
WHAT'S IN THE BOX
Main Unit EB-735F Projector
Power Cable 1.8 m
USB Cable
Remote Control Yes
Battery for Remote Control 2 x AA
Easy Interactive Pen
Battery for Easy Interactive Pen
Pen Stand
Pen tip (Soft)
Pen tip (Hard)
Corner markers for auto setup
PRODUCT OPTIONS Description
V13H134A60 Air Filter – ELPAF60
V12HA06A06 Projector wall mount – ELPMB62
V12H467053 External speakers ELPSP02
V12H731P01 Document Camera ELPDC21
V12H005A01 Wireless LAN Unit ELPAP11
V12H003B23 Projector ceiling mount - ELPMB23
