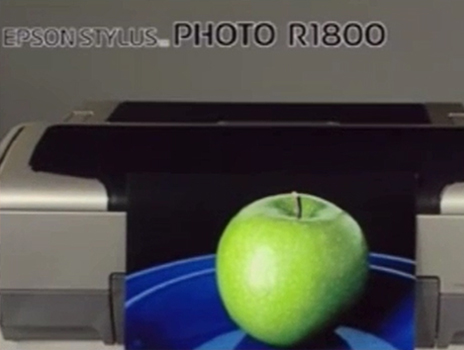

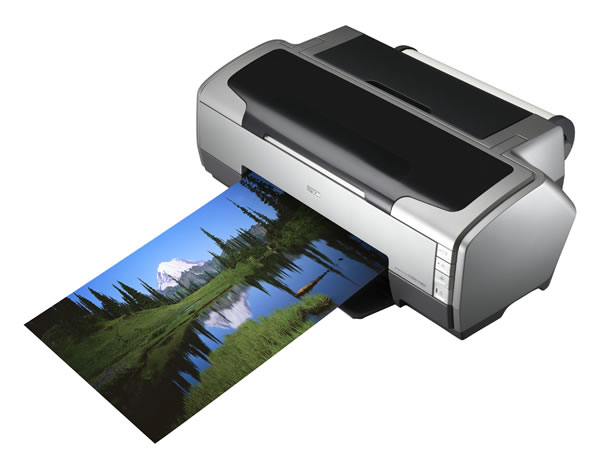

Epson photographic quality colour Inkjet printer featuring Epson UltraChrome Hi-Gloss ink, red and blue inks for a wider colour gamut, Gloss Optimiser and 8 individual cartridges. Print resolution of 5760 Optimised dpi (Using RPM Technology), 1.5pl micro droplets, and 13ppm black text (A4 Memo) printing. Print directly onto the surface of inkjet printable CD and DVD media.
PRINTER TYPE
PRODUCT NAME
PRODUCT CODE
PRINTING METHOD
On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION
1440 nozzles (180 per colour)
MINIMUM DROPLET SIZE
1.5pl
DURABILITY
LIGHTFASTNESS#
100 years on Matte Paper - Heavy Weight
LIGHTFASTNESS#
104 years on Epson Premium Glossy Photo Paper
LIGHTFASTNESS TEST CRITERIA (INDOOR DISPLAY CONDITIONS)
Light source
Fluorescent light
Intensity
70k lux
Temperature
24oC
Humidity
60% RH
Glass Mount
2mm, soda lime
Fade Criteria
Pure YMC 30% loss at OD=1
Display Life Calculation
Total illuminance/(500 lux x 10 hours x 365 days = 1 year)
Tests developed and conducted by Epson under fluorescent light (indoor display condition) with glass mount. The data is calculated by Epson's accelerated test of prints on specialty media.
For further details on gas and lightfastness, please click here.
# Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops.
PRINT SPEED
BLACK TEXT (MEMO) A4
Approx. 13 PPM (Draft) *1
COLOUR TEXT (MEMO) A4
Approx. 6.5 PPM (Draft) *2
Photo 8" x 10"
71 sec+ (Photo) *3
Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications.
"Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. The computer environment we test under is as follows: CPU: Pentium 4 2.0GHz; RAM: 256MB; OS: Windows XP Professional; Interface/Connectivity: USB 2.0; Software: MS-Word XP/Adobe Photoshop7.0; Paper: Epson Premium Glossy Photo Paper or Plain Paper +When printed on Epson Photo Paper
RESOLUTION
5760 x 1440 Optimised dpi using Resolution
Performance Management (RPM) Technology
PAPER HANDLING
PAPER FEED METHOD
Friction feed with Paper Feeder
PAPER HOLD CAPACITY
Up to 120 sheets at 90gsm
PAPER SIZES
A3+, A3, A4, A5, A6, Letter, B5, Legal, Executive, Half Letter,
10 x 15cm, 4" x 6", 5" x 8", 8" x 10"
PRINTER SOFTWARE
PRINTER DRIVERS
OPERATING SYSTEMS
Microsoft® Windows® 98 / 2000 / Me / XP / Vista
Mac®OS X 10.2 or 10.5*
* Drivers available are downloadable from Tech Epson
APPLICATIONS
(PRINTER SOFTWARE)
Epson PRINT CD
Epson Web-To-Page
Epson Creativity Suite
Epson File Manager
Epson Easy Photo Print
Epson Darkroom Print
Epson Raw Print (Windows® XP
& 2000 only)
INTERFACES
USB 2.0 (Hi-Speed)+ (cable included)
IEEE 1394* for PC/Mac®
+ To use the USB port, your PC must conform to PC98
specifications, and have Windows® 98/ME/2000/XP preinstalled. Consult the
documentation provided with your PC for further information about USB connectivity.
Note also that printing errors may occur if non-standard cables or more than two hub
connections are used.
* IEEE 1394 (FireWire) is not supported under Windows Vista operating system.
INK CARTRIDGES
BLACK INK
COLOUR INK
Photo BLACK (T0541)
MATTE BLACK (T0548)
Cyan (T0542), Magenta (T0543), Yellow (T0544), Red (T0547), Blue (T0549), Gloss Optimiser (T0540)
PRINT CAPACITY‡
450 pages at ECMA 5%
PRINT CAPACITY‡
520 A4 pages 5%
PRINTER TYPE
PRODUCT NAME
PRODUCT CODE
PRINTING METHOD
On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION
1440 nozzles (180 per colour)
MINIMUM DROPLET SIZE
1.5pl
DURABILITY
LIGHTFASTNESS#
100 years on Matte Paper - Heavy Weight
LIGHTFASTNESS#
104 years on Epson Premium Glossy Photo Paper
LIGHTFASTNESS TEST CRITERIA (INDOOR DISPLAY CONDITIONS)
Light source
Fluorescent light
Intensity
70k lux
Temperature
24oC
Humidity
60% RH
Glass Mount
2mm, soda lime
Fade Criteria
Pure YMC 30% loss at OD=1
Display Life Calculation
Total illuminance/(500 lux x 10 hours x 365 days = 1 year)
Tests developed and conducted by Epson under fluorescent light (indoor display condition) with glass mount. The data is calculated by Epson's accelerated test of prints on specialty media.
For further details on gas and lightfastness, please click here.
# Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops.
PRINT SPEED
BLACK TEXT (MEMO) A4
Approx. 13 PPM (Draft) *1
COLOUR TEXT (MEMO) A4
Approx. 6.5 PPM (Draft) *2
Photo 8" x 10"
71 sec+ (Photo) *3
Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications.
"Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. The computer environment we test under is as follows: CPU: Pentium 4 2.0GHz; RAM: 256MB; OS: Windows XP Professional; Interface/Connectivity: USB 2.0; Software: MS-Word XP/Adobe Photoshop7.0; Paper: Epson Premium Glossy Photo Paper or Plain Paper +When printed on Epson Photo Paper
RESOLUTION
5760 x 1440 Optimised dpi using Resolution
Performance Management (RPM) Technology
PAPER HANDLING
PAPER FEED METHOD
Friction feed with Paper Feeder
PAPER HOLD CAPACITY
Up to 120 sheets at 90gsm
PAPER SIZES
A3+, A3, A4, A5, A6, Letter, B5, Legal, Executive, Half Letter,
10 x 15cm, 4" x 6", 5" x 8", 8" x 10"
PRINTER SOFTWARE
PRINTER DRIVERS
OPERATING SYSTEMS
Microsoft® Windows® 98 / 2000 / Me / XP / Vista
Mac®OS X 10.2 or 10.5*
* Drivers available are downloadable from Tech Epson
APPLICATIONS
(PRINTER SOFTWARE)
Epson PRINT CD
Epson Web-To-Page
Epson Creativity Suite
Epson File Manager
Epson Easy Photo Print
Epson Darkroom Print
Epson Raw Print (Windows® XP
& 2000 only)
INTERFACES
USB 2.0 (Hi-Speed)+ (cable included)
IEEE 1394* for PC/Mac®
+ To use the USB port, your PC must conform to PC98
specifications, and have Windows® 98/ME/2000/XP preinstalled. Consult the
documentation provided with your PC for further information about USB connectivity.
Note also that printing errors may occur if non-standard cables or more than two hub
connections are used.
* IEEE 1394 (FireWire) is not supported under Windows Vista operating system.
INK CARTRIDGES
BLACK INK
COLOUR INK
Photo BLACK (T0541)
MATTE BLACK (T0548)
Cyan (T0542), Magenta (T0543), Yellow (T0544), Red (T0547), Blue (T0549), Gloss Optimiser (T0540)
PRINT CAPACITY‡
450 pages at ECMA 5%
PRINT CAPACITY‡
520 A4 pages 5%
View or Download additional information
Find drivers, manuals and product setup for Stylus Photo R1800.
