Back catalogue – Stylus Pro 4900 - 17"

If you produce professional photography, gallery quality artwork or colour accurate proofs then the Epson Stylus Pro 4900/7900/9900 range is the series of choice. It represents a pinnacle in colour printing technology with an ultra-high resolution and an incredible colour gamut. It provides outstanding output in a platform that is flexible, reliable and easy to maintain.

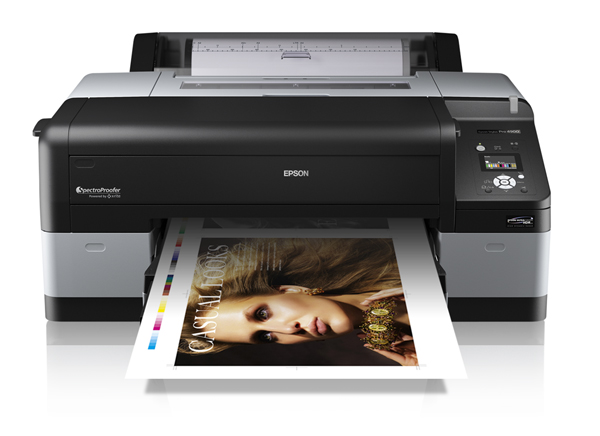

The SP-4900 is a 17" (432mm) Large Format Printer that supports a wide range of roll and sheet media. It features an ultra-fine MicroPiezo® Thin Film Print™ head with Variable Sized Dot Technology™ for output with superior resolution, gradations and colour density. It uses Epson UltraChrome® HDR all-pigment aqueous ink that provides premium colour and B&W output that is consistent, predictable and durable. Large cartridges enable extended operation with a reduced cost per print. An optional SpectroProofer is available for precision colour management and ISO standard proofing work.

FEATURES AT A GLANCE
  • Amazing Print Quality – Epson MicroPiezo 2880x1440dpi TFP head with VSDT enables consistent and predictable output in ultra-high resolution with superior half tones and an optimised ink density.
  • Supreme Colour – Epson UltraChrome HDR ink enables print with a high dMax and exceptionally wide colour gamut that is certified at 98% pantone coverage.
  • Outstanding B&W – produces gallery quality black-and-white images with auto switching between Photo & Matte ink for output on different media types.
  • Excellent Image Stability – prints dry quickly to become water and scratch resistant. Output can be stored for extended periods with excellent lightfastness*.
  • Flexible Operation – supports print speeds up to 30m2/hr on a wide range of media. Handles roll based stock up to 17" (432mm) wide and sheets up to A2 and above including board up to 1.5mm thick. Supports edge-to-edge and borderless printing.
  • Easy to Use – convenient spindle-less roll media loading with an auto media management system for fast and easy exchange. Has a colour LCD control panel with integrated help, incorporates an auto-cutter and accepts cartridges up to 700ml.
  • Designed for Business – flexible interfacing, operates with reduced power consumption and requires minimum maintenance. Supplied in various configurations with an optional SpectroProofer and user selectable warranty/support packages. Compatible with all mainstream RIP software.




Supreme Imaging

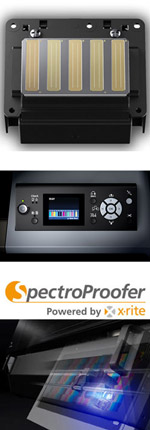

The Stylus Pro 4900/7900/9900 series features Epson’s patented Thin Film MicroPiezo head technology with an enhanced 2880x1440dpi resolution. Unlike competing mechanisms that are based on heat, the TFP uses a mechanical movement that is not only kinder to the ink chemistry for better imaging with more stable output, but consumes less power, is more flexible and more durable. Micro-fine drop-on-demand nozzles enable superior dot shaping with reduced overspray, more precise placement and volume/density control. The head features a 10 channel construction that is complemented with an advanced LUT (Look-Up-Table) and an 11 cartridge supply system with automatic Matte / Photo Black switching that optimises the dynamic range on different media types. The printer incorporates VSDT (Variable-size Droplet Technology that enhances image quality with superior half-tones and optimised colour density while minimising ink consumption. A special coating on the head works in conjunction with self monitoring, cleaning, and alignment systems to ensure predictable, consistent and reliable output with minimal user maintenance.

UltraChrome High Dynamic Range (HDR) ink is an expansion of Epson’s famous K3 family. Using aqueous (water based) all-pigment ink technology, the K3 series produces prints which dry quickly to become water and scratch resistant with an incredible colour gamut and Dmax. The printer automatically switches between Matte and Photo Black to suit the gloss levels on different media types. It mixes the base black with light and light-light black ink to provide the maximum possible tonal range with a neutral grey, excellent balance, reduce bronzing and no colorcasts/colour twist. Colour is stable in just 30 minutes and can remain lightfast for up to 200 years or longer*. HDR ink uses improved Microcrystal Encapsulation™ Technology for a reduced gloss differential and more consistent colour under different lighting conditions. It also extends the gamut range with addition of two inks; orange for reproduction of fine facial tones and lighting effects plus green for superior landscape and environmental imaging. Used together the inks provide for an incredible 98% coverage of the Pantone® pallet.

The Stylus Pro range is colorimetric calibrated during assembly to ensure that colour proofs, photographic and fine–art prints from different printers of the same model remain totally consistent. The ink features a colour constancy level of less than DeltaE 1.0 so that prints remain visually consistent when viewed under different lights and lighting conditions. An optional spectrophotometer is available to suit all models in the range. Co-developed with X-Rite®, the SpectroProofer provides extreme measurement accuracy and when driven with an appropriate RIP it enables precision proofing as well as the automation of colour management into operational workflows. It is available with or without a UV-cut filter and mounts directly to the printer with a built-in dryer to accelerate dry-down and reading.


Flexible and Easy to Operate

The SP-4900 is desktop printer with a 17" (432mm) wide carriage and flexible media handling with 4 paper paths. It supports basic bond to photo and fine-art paper, transparent film to translucent back-lit, canvas to specialist synthetics. It accepts roll media via a spindle with adjustable tension control and features a high-speed auto-cutter that will cut most stocks including canvas. Roll paper belts are also available as an option to enable tension maintenance during storage. An integrated barcoding system helps track consumption on rolls while also enabling rapid exchange and automatic re-configuration for different media types. The printer supports sheet media and has a straight through paper path for solid board. It supports edge-to-edge printing on sheet and roll media and will print full borderless on roll stocks. It incorporates a front loading cassette that holds up to 250 sheets of paper.

The Stylus Pro range has been designed for professional and commercial applications. All models feature fast and flexible networking facilities. They have large colour LCD screens with an easy to follow menu system and in-built help. They can be configured remotely and have driver software available to suit most operating systems. The range has been designed to ensure consistent and reliable operation with minimal maintenance. Ink cartridges are pressurised to support reliable delivery at the highest production speeds and come in a variety of sizes to suit different levels of usage and cost per print requirements. Printers can be purchased with a range of warranty and support packages to suit different leasing plans and business needs. They are supported by an extensive service network that has been configured for on-site repair.**



* Accelerated testing of prints on specialty photo & fine art media displayed indoors under glass indicates light stability of up to 100 years for colour and 200 years for B&W. If prints are treated and stored appropriately then light stability can be increased to 300 years or longer. IMPORTANT: Actual stability will vary according to the media, image, surface treatment, display conditions, light intensity, humidity and atmospheric conditions. Epson does not provide any warranty or guarantee on the longevity of prints. For further details on light stability and image preservation please visit www.wilhelm-research.com.

** Service and support is provided for product supplied through Epson Australia. This facility is provided in conjunction with the Epson Authorised Large Format Reseller network. Limitations apply to the provision of on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. Please contact Epson Australia or one of our Authorised Resellers for full details on coverage, terms and limitations.

SIZE
Max Print Width 17 inch (432mm) wide
Max Sheet Size A2+
PRINT TECHNOLOGY
Print Head Drop-on-demand MicroPiezo™ TFP
Print Modes Uni & Bi-directional
Print Technology VSDT, auto head alignment, auto nozzle checking, auto cleaning, ink repelling coating, auto Pk & Mk switching
Nozzle Configuration 360 per colour
Active Channels 10
Max Resolution 2880 x 1440dpi
Min Droplet Size 3.5pl
INK SYSTEM
Family Epson Ultrachrome® HDR
Type Aqueous all-pigment
Colours 11
Cartridge Size 200ml
PERFORMANCE (A0 sheet)
Draft 360 x 360dpi 0.5 minutes
Normal 360 x 720dpi 0.8 minutes
Fine 720 x 720dpi 1.8 minutes
Super Fine 720 x 1440dpi 3.6 minutes
Super Photo 2880 x 1440dpi 7.0 minutes

Figures represent print times only for the Epson test sample image as shown, produced on Plain (draft – fine modes) and Premium Photo paper (super fine & super photo modes). Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors.

MEDIA SUPPORT
Format Roll and cut sheet
Size 203-432mm wide x 150mm diameter 3" core / 103mm diameter 2" core roll, A4-A2+ sheet
Thickness 0.08-0.5mm roll / 0.08-1.5mm sheet
Min Margins 0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet
Loading Front manual, front cassette (up to 250 plain & 100 photo sheets), top manual, top roll (spindle style with dual tension settings), and rear manual
Handling Heavy-duty rotary auto-cutter (under 5s per page) & Media Barcode System
Output Front with extendable tray
OPERATION
Control Panel 2.5” Colour LCD
Interface High Speed USB 2.0
Ethernet 10Base-T / 100Base-T
Included Software Printer Driver, LFP RemotePanel 2, EpsonNet Config, EpsonNet Print, EpsonNet setup
OS Compatibility Linux, Mac OS X 10.4, Leopard 10.5, Snow Leopard 10.6, Lion 10.7, Mountain Lion 10.8, Windows 8, Win 7, Win 7 x64, Win Vista, Win Vista x64 & Win XP
Software Compatibility Compatible with a wide range of design, production, workflow management and RIP software
Memory 256MB Main + 64MB Network
Language ESC/P Raster
ENVIRONMENTAL
Operational Temp 10° to 35° C (15-25° C recommended)
Operational Humidity 20 to 80% with no condensation (40-60% recommended)
Power Supply 100 - 240 V, 50 Hz - 60 Hz AC, 0.4-0.7A
Power Consumption 52W Operating / 8.5W Sleep
Operating Noise 45dB
PHYSICAL
Dimensions 863mm x 405mm x 766mm (WxHxD)
Weight 52kg (without ink)
WHAT'S IN THE BOX
Printer, Power Cord, Set of 80ml Inks (note 20-50% may be used during initialisation), 1 x Spindle, 1 x Maintenance Tank, 1 x Borderless Maintenance Tank, 2 x Borderless Print Spacers, Installation / Safety manual, Utility software & User manual (CD)
CONFIGURATION OPTIONS
PRO49001YR Printer with 1 Year On-site Warranty**
PRO49003YR Printer with 3 Year On-site Warranty**
PRO49005YR Printer with 5 Year On-site Warranty**
PRO4900NUV Printer + S-Proofer ILS20 (non-UV), 1 Yr On-site Warranty**
PRO4900NUV3YR Printer + S-Proofer ILS20 (non-UV), 3 Yr On-site Warranty**
PRO4900UV Printer + S-Proofer ILS20 (UV Filter), 1 Yr On-site Warranty**
PRO4900UV3YR Printer + S-Proofer ILS20 (UV Filter), 3 Yr On-site Warranty**
PRO4900SP Printer + S-Proofer ILS30, 1 Yr On-site Warranty**
PRO4900SP3YR Printer + S-Proofer ILS30, 3 Yr On-site Warranty**
PRO4900SP5YR Printer + S-Proofer ILS30, 5 Yr On-site Warranty**
ACCESSORIES & OPTIONS
C12C811251 Additional Dual Tension Roll-Feed Spindle
C12C890121 Optional Roll Paper Belt
C12C815351 Replacement Auto Cutter Blade
C12C619000 Replacement Maintenance Tank
C12C619100 Replacement Borderless Maintenance Tank
SPECTRO17NUV SpectroProofer ILS20 (non-UV) Upgrade Kit
SPECTRO17UV SpectroProofer ILS20 (UV Filter) Upgrade Kit
SPECTRO17SP SpectroProofer ILS30 Upgrade Kit
1YWPRO4900 1 Year On-Site Printer Service Pack**
2YWPRO4900 2 Year On-Site Printer Service Pack**
1YWSPECTRO 1 Year On-Site Spectro Service Pack**
2YWSPECTRO 2 Year On-Site Spectro Service Pack**
** Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson Australia or one of our Authorised Large Format Resellers if you have questions or concerns.


Product name Globalcode Price (inc GST)
excludes delivery
Order quantity
INK CARTRIDGES
Epson UltraChrome HDR 200ml Photo Black Pigment Ink Cartridge C13T653100 $225.00
Epson UltraChrome HDR 200ml Cyan Pigment Ink Cartridge C13T653200 $225.00
Epson UltraChrome HDR 200ml Vivid Magenta Pigment Ink Cartridge C13T653300 $225.00
Epson UltraChrome HDR 200ml Yellow Pigment Ink Cartridge C13T653400 $225.00
Epson UltraChrome HDR 200ml Light Cyan Pigment Ink Cartridge C13T653500 $225.00
Epson UltraChrome HDR 200ml Vivid Light Magenta Pigment Ink Cartridge C13T653600 $225.00
Epson UltraChrome HDR 200ml Light Black Pigment Ink Cartridge C13T653700 $225.00
Epson UltraChrome HDR 200ml Matte Black Pigment Ink Cartridge C13T653800 $225.00
Epson UltraChrome HDR 200ml Light Light Black Pigment Ink Cartridge C13T653900 $225.00 Out of stock
Notify me
Epson UltraChrome HDR 200ml Orange Pigment Ink Cartridge C13T653A00 $225.00
Epson UltraChrome HDR 200ml Green Pigment Ink Cartridge C13T653B00 $225.00
GENUINE Epson PAPERS
4" x 6" Ultra Glossy Photo Paper - 50 Sheets (300gsm) C13S041943 $24.99 Out of stock
Notify me
A3 Archival Matte Paper - 50 Sheets (189gsm) C13S041344 $101.95
A3 Premium Glossy Photo Paper - 20 sheets (255gsm) C13S041288 $85.95
A3 Premium Semigloss Photo Paper - 20 Sheets (250gsm) C13S041334 $114.95 Out of stock
Notify me
A4 Archival Matte Paper - 50 Sheets (189gsm) C13S041342 $40.99 Out of stock
Notify me
A4 Premium Glossy Photo Paper - 20 Sheets (255gsm) C13S041287 $29.99
A4 Premium Semigloss Photo Paper - 20 Sheets (250gsm) C13S041332 $49.99
A4 Ultra Glossy Photo Paper - 15 Sheets (300gsm) C13S041927 $36.99 Out of stock
Notify me
Epson Archival Paper 189gsm Matte A3+ Sheet Media (50pcs) C13S041340 $119.00 Out of stock
Notify me
Epson Canvas Signature Worthy Premium Satin 13" Roll Media C13S041845 $79.00
Epson Canvas Signature Worthy Water Resistant Matte 17" Roll Media C13S042013 $159.00
Epson Fine Art Paper Signature Worthy Cold Press Bright 17" Roll Media C13S042313 $239.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Cold Press Bright A2 Sheet Media C13S042312 $299.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Cold Press Bright A3+ Sheet Media C13S042310 $203.00
Epson Fine Art Paper Signature Worthy Cold Press Bright A4 Sheet Media C13S042308 $79.00
Epson Fine Art Paper Signature Worthy Cold Press Natural 17" Roll Media C13S042303 $239.00
Epson Fine Art Paper Signature Worthy Cold Press Natural A2 Sheet Media C13S042302 $299.00
Epson Fine Art Paper Signature Worthy Cold Press Natural A3+ Sheet Media C13S042300 $203.00
Epson Fine Art Paper Signature Worthy Cold Press Natural A4 Sheet Media C13S042298 $79.00
Epson Fine Art Paper Signature Worthy Hot Press Bright 17" Roll Media C13S042333 $239.00
Epson Fine Art Paper Signature Worthy Hot Press Bright A2 Sheet Media C13S042332 $298.00
Epson Fine Art Paper Signature Worthy Hot Press Bright A3+ Sheet Media C13S042330 $203.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Hot Press Bright A4 Sheet Media C13S042328 $79.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Hot Press Natural 17" Roll Media C13S042323 $239.00
Epson Fine Art Paper Signature Worthy Hot Press Natural A2 Sheet Media C13S042322 $298.00
Epson Fine Art Paper Signature Worthy Hot Press Natural A3+ Sheet Media C13S042320 $203.00
Epson Fine Art Paper Signature Worthy Hot Press Natural A4 Sheet Media C13S042318 $83.00
Epson Fine Art Paper Signature Worthy Premium Luster 16" Roll Media C13S042079 $199.00
Epson Fine Art Paper Signature Worthy Premium Luster 300mm Roll Media C13S042078 $175.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Premium Luster A2 Sheets (25pcs) C13S042123 $153.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Premium Luster A3+ Sheets (50pcs) C13S041407 $153.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Traditional 17" Roll Media C13S045054 $259.00
Epson Fine Art Paper Signature Worthy Traditional A2 Sheets (25pcs) C13S045052 $246.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Traditional A3+ Sheets (25pcs) C13S045051 $155.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Traditional A4 Sheets (25pcs) C13S045050 $64.95
Epson Fine Art Paper Velvet A2 Sheet Media C13S042096 $265.00 Out of stock
Notify me
Epson Fine Art Paper Velvet A3+ Sheet Media C13S041637 $131.00
Epson Fine Art Paper Watercolor Radiant White A3+ Sheet Media C13S041352 $71.95
Epson Photo Paper 102gsm A2 Sheet Media (30pcs) C13S041079 $60.95
Epson Photo Paper 102gsm A3+ Sheet Media (100pcs) C13S041069 $86.95
Epson Photo Paper 200gsm Gloss A3+ Sheet Media (20pcs) C13S042535 $69.99
Epson Photo Paper 250gsm Premium Semigloss A3+ Sheets (20pcs) C13S041328 $98.00
Epson Photo Paper 255gsm Premium Gloss A3+ Sheet Media (20pcs) C13S041289 $98.00 Out of stock
Notify me
Epson Photo Paper Gloss (250) 17" Roll Media C13S041892 $142.00
Epson Photo Paper Premium Gloss (170) 16.5" Roll Media C13S042076 $175.00
Epson Photo Paper Premium Gloss (250) 16" Roll Media C13S041742 $199.00 Out of stock
Notify me
Epson Photo Paper Premium Glossy (250) 13" Roll Media C13S041378 $120.00 Out of stock
Notify me
Epson Photo Paper Premium Glossy (250) A2 Sheet Media C13S042091 $120.00
Epson Photo Paper Premium Semigloss (170) 16.5" Roll Media C13S042075 $153.00
Epson Photo Paper Premium Semigloss (250) 13" Roll Media C13S041338 $131.00
Epson Photo Paper Premium Semigloss (250) 16" Roll Media C13S041743 $199.00 Out of stock
Notify me
Epson Photo Paper Premium Semigloss (250) A2 Sheet Media C13S042093 $120.00
Epson Photo Paper Premium Semimatte (260) 16" Roll Media C13S042149 $199.00
Epson Presentation Paper 167gsm Heavy Weight Matte A3+ (50pcs) C13S041264 $109.00 Out of stock
Notify me
Epson Proofing Paper White Semimatte 17" Roll Media C13S042003 $199.00 Out of stock
Notify me
Epson Versatile Paper 192gsm Enhanced Matte 17x22" Sheets (50pcs) C13S041908 $142.00
Epson Versatile Paper 192gsm Enhanced Matte A2 Sheets (50pcs) C13S042095 $153.00 Out of stock
Notify me
Epson Versatile Paper Enhanced Matte Paper 17" Roll Media C13S041725 $131.00 Out of stock
Notify me
Epson Versatile Paper Singleweight Matte 17" Roll Media C13S041746 $120.00
ACCESSORIES & OPTIONS
Replacement Stylus Pro/SureColor Maintenance Tank C13T619000 $31.95
Additional 17" Stylus Pro/SureColor Roll Feed Spindle C12C811251 $199.00 Out of stock
Notify me
Stylus Pro/SureColor Auto Cutter Blade C12C815351 $251.00
Optional Roll Paper Belt C12C890121 $32.95
Replacement SP4900/SCP5070 Borderless Maintenance Tank C13T619100 $22.95
